Průtokoměr
Brooks Instrument 1350/D2A4D1A6E020 (5-30 ln/h)
SKU: 3014
Skladem
DODÁNÍ 24/7 MOŽNÉ
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

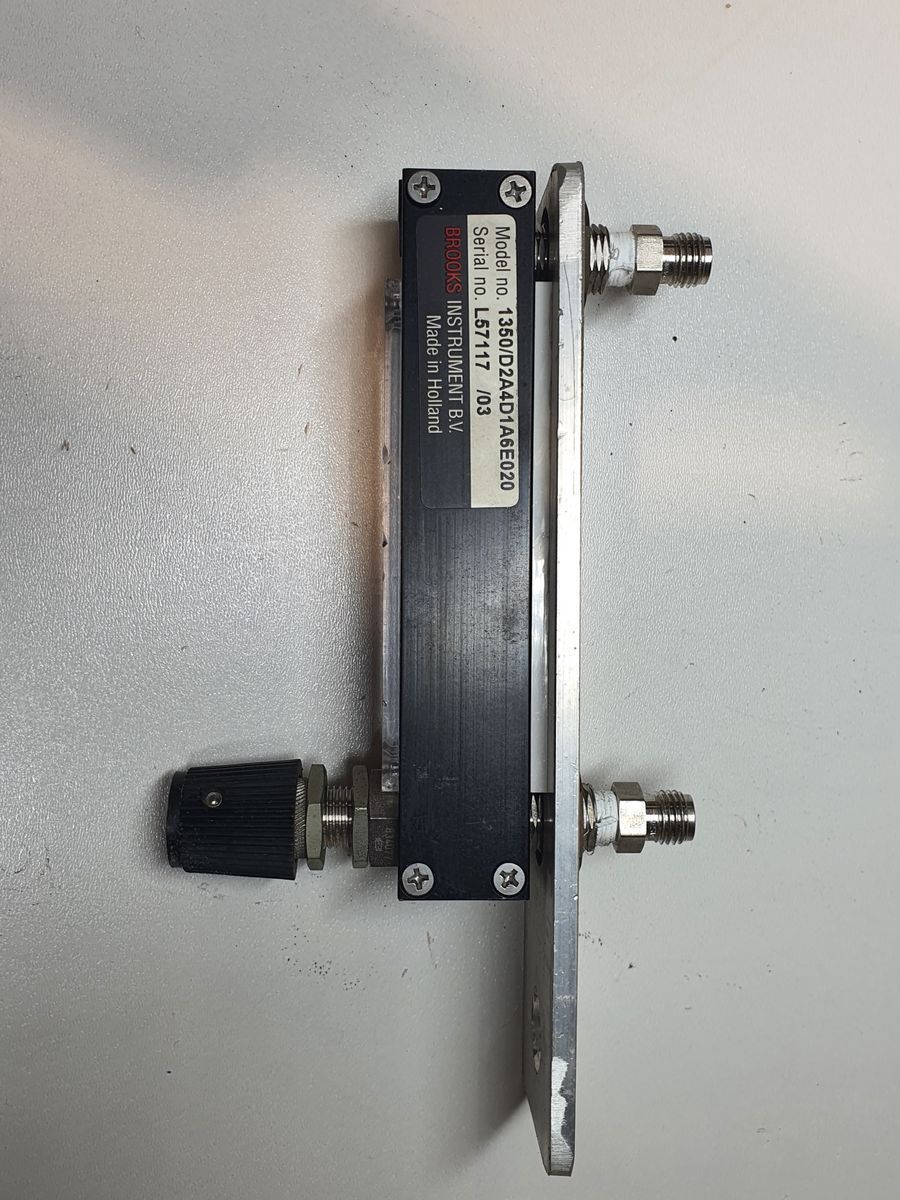

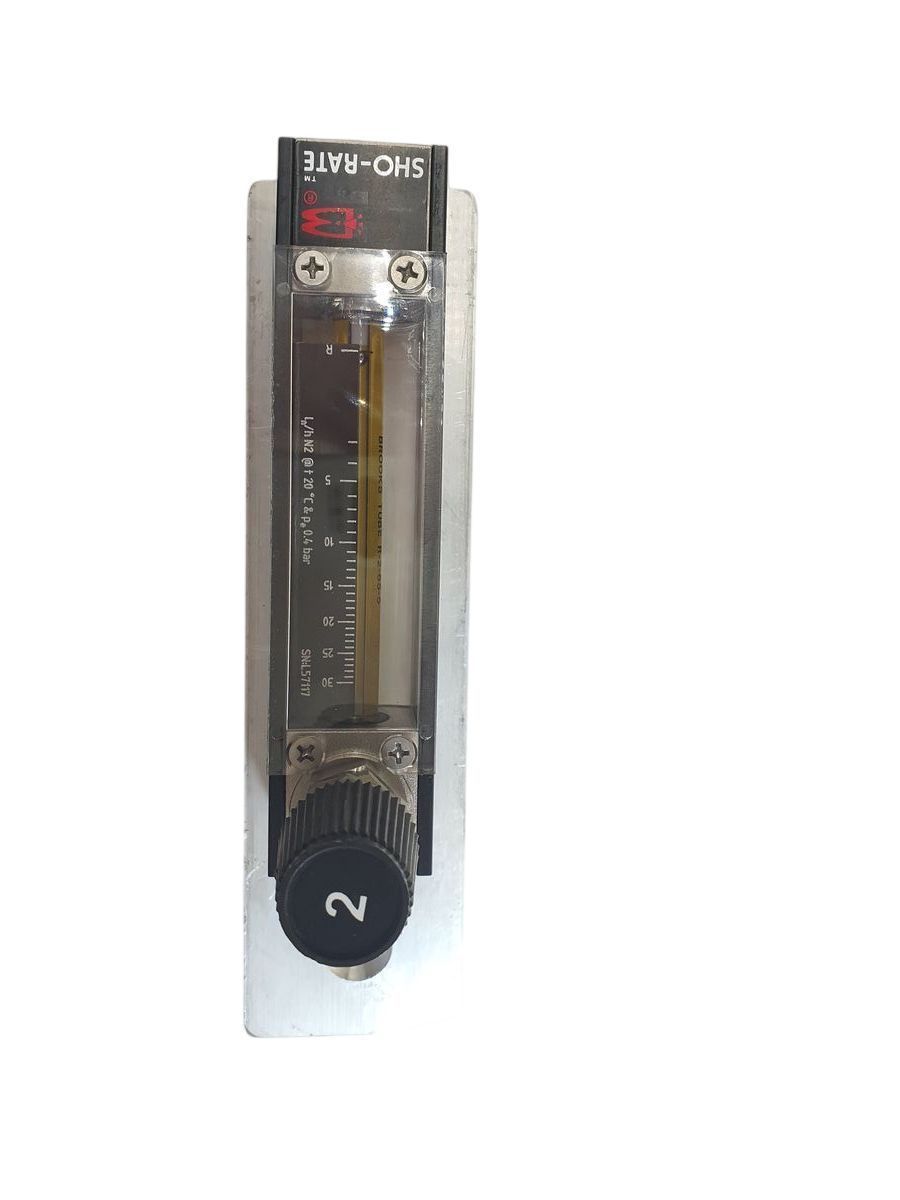

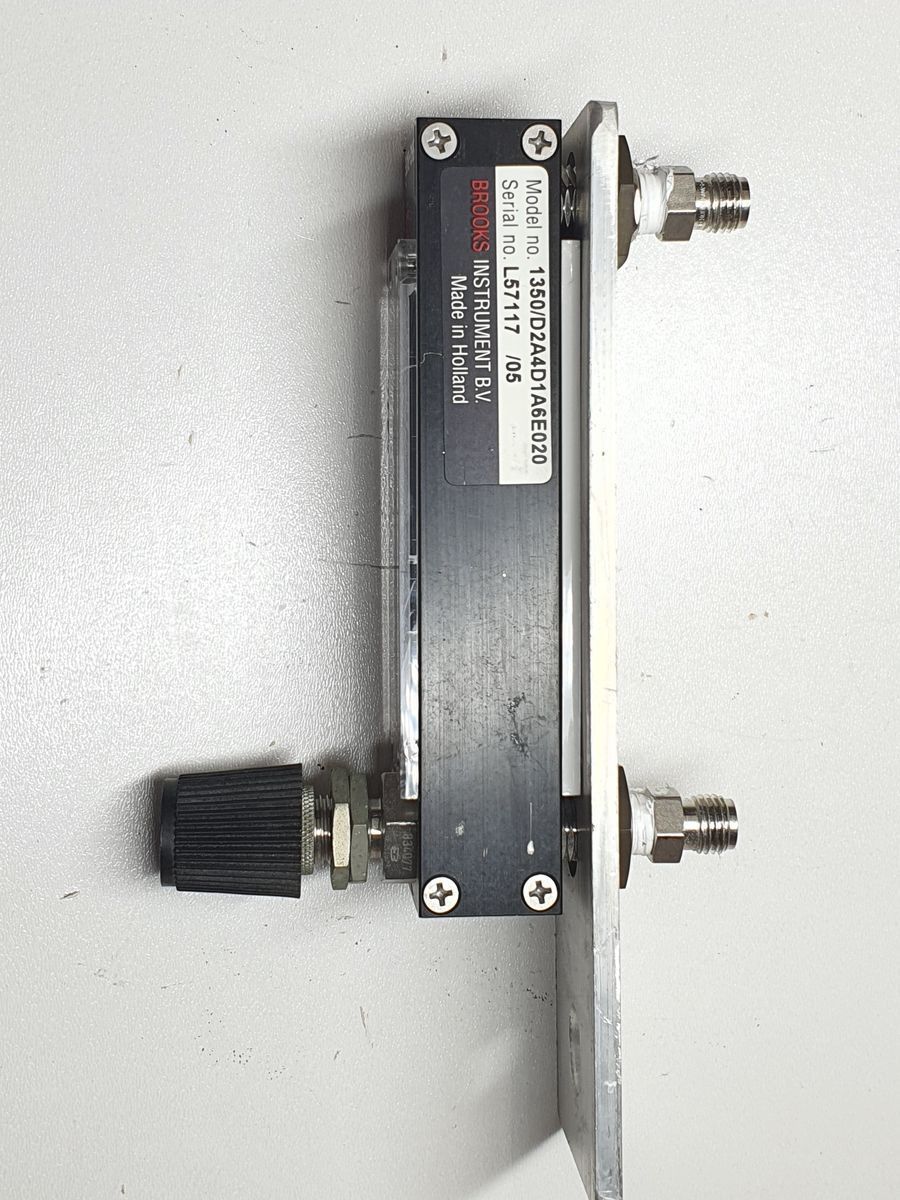

Brooks Sho-Rate™ 1350 Flowmeter
Manufacturer: Brooks Instrument B.V. (Netherlands)

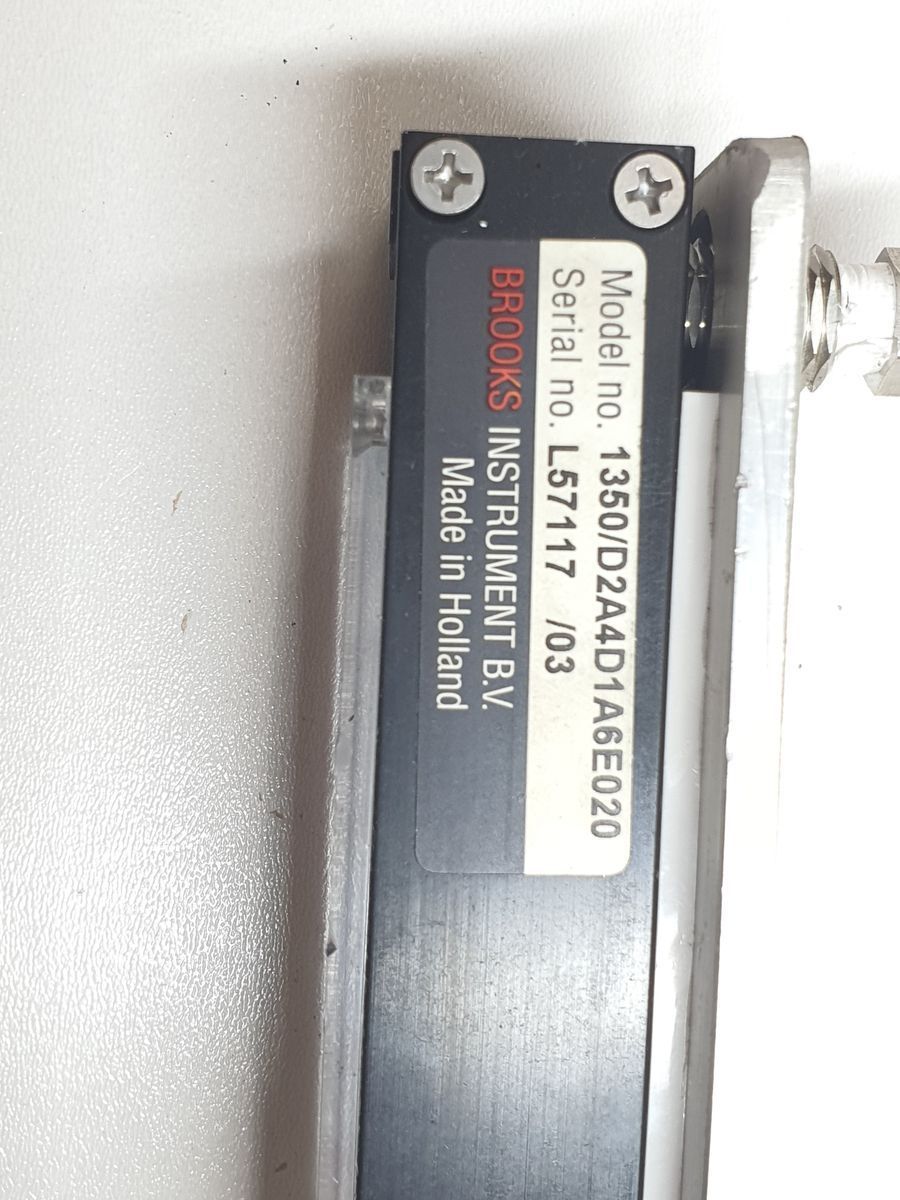

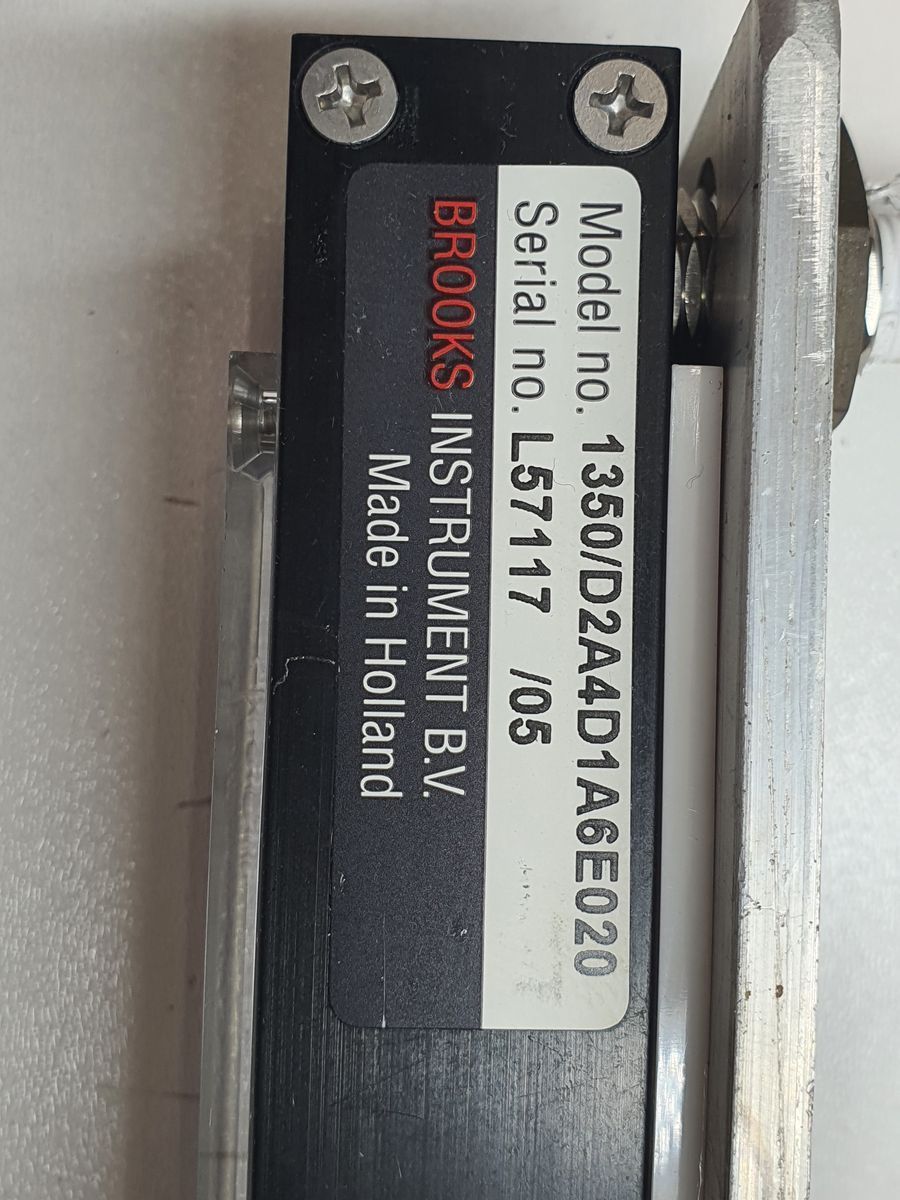

Model: 1350/D2A4D1A6E020
Serial No.: L57117
| Parameter | Specification |
|---|---|
| Flowmeter Type | Variable area flowmeter (rotameter) with glass metering tube |
| Measurement Principle | Mechanical, based on float position |
| Indication | Direct visual indication via float position |
| Measured Medium | Nitrogen (N₂) |
| Flow Range | Fl–080 / 5-30 ln/h N₂ |
| Calibration Temperature | 20 °C |
| Accuracy | ±5% of full scale |
| Repeatability | ±0.5% of full scale |
| Operating Temperature Range | 1 °C to 121 °C |
| Calibration Conditions | 20 °C, nitrogen |
| Inlet Pressure (Pe) | 0.4 bar |
| Metering Tube Material | Borosilicate glass |
| Float Material | Stainless steel or glass (per tube/float configuration) |
| Body / Frame Material | Aluminum |
| End Fittings | Stainless steel or plated brass (model dependent) |
| Seals / O-rings | Buna-N or Viton® |
| Installation Orientation | Vertical mounting |
| Connections | 1/8" or 1/4" NPT (depending on configuration) |

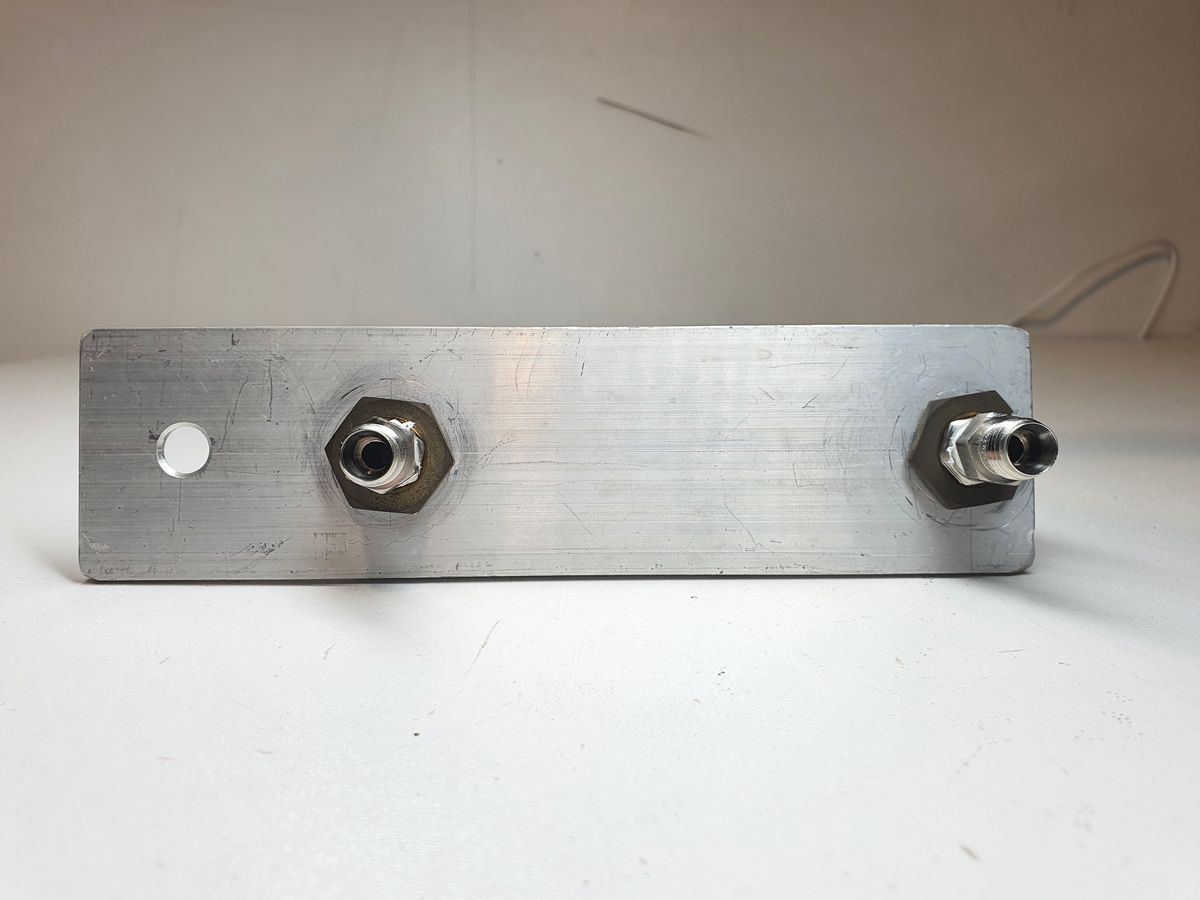

| Mounting | Panel mounted, rear or side connection options |
| Compliance | PED SEP (Sound Engineering Practice) |
| Country of Manufacture | Netherlands |
×
![]()
