Průtokoměr

Brooks Instrument 1350/D2A3D1B5A000 (2-12 ln/h)

SKU: 3010

Skladem

DODÁNÍ 24/7 MOŽNÉ

Vyberte stav

Použité
Získáno z pracovního prostředí

Bez DPH: €55,00 (2 dostupné)

včetně DPH: €66,55

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informace o záruce

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 3 měsíce

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

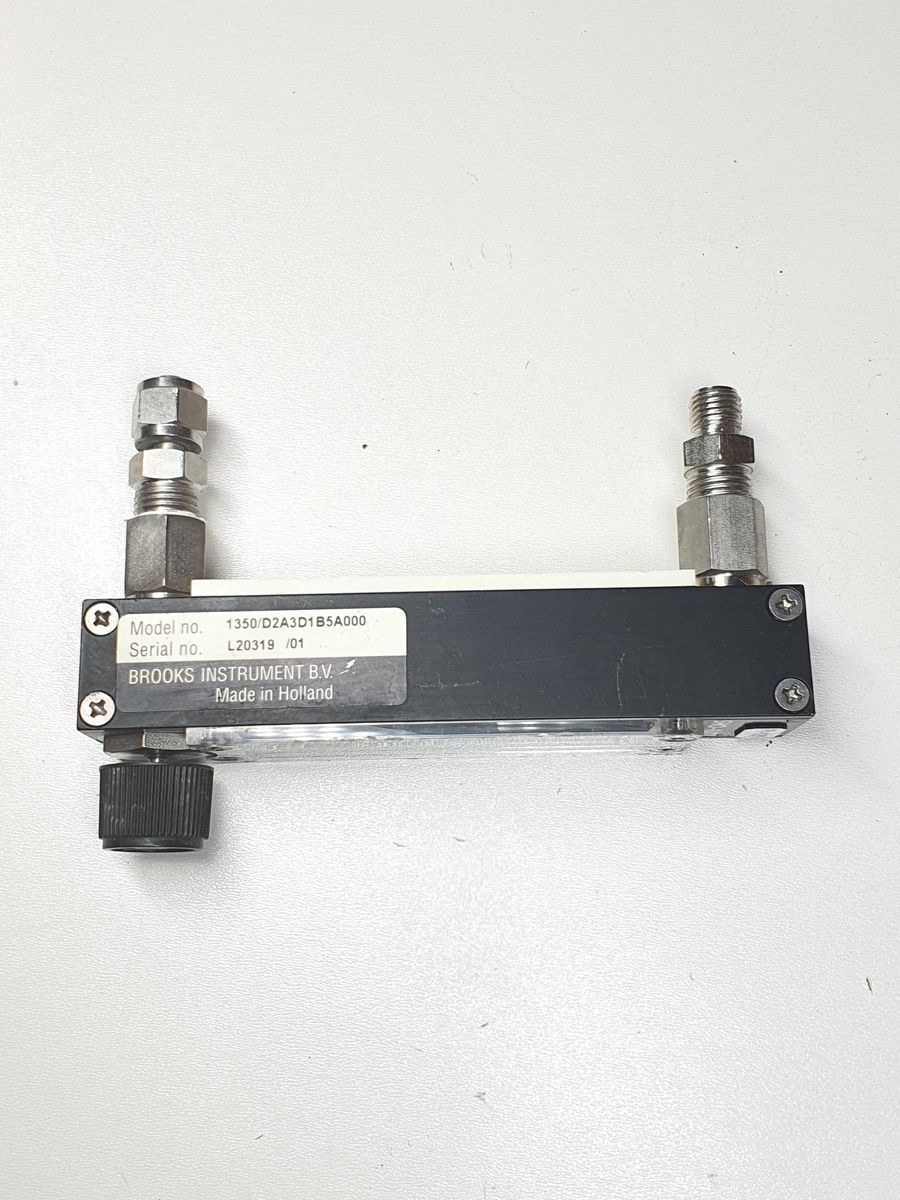

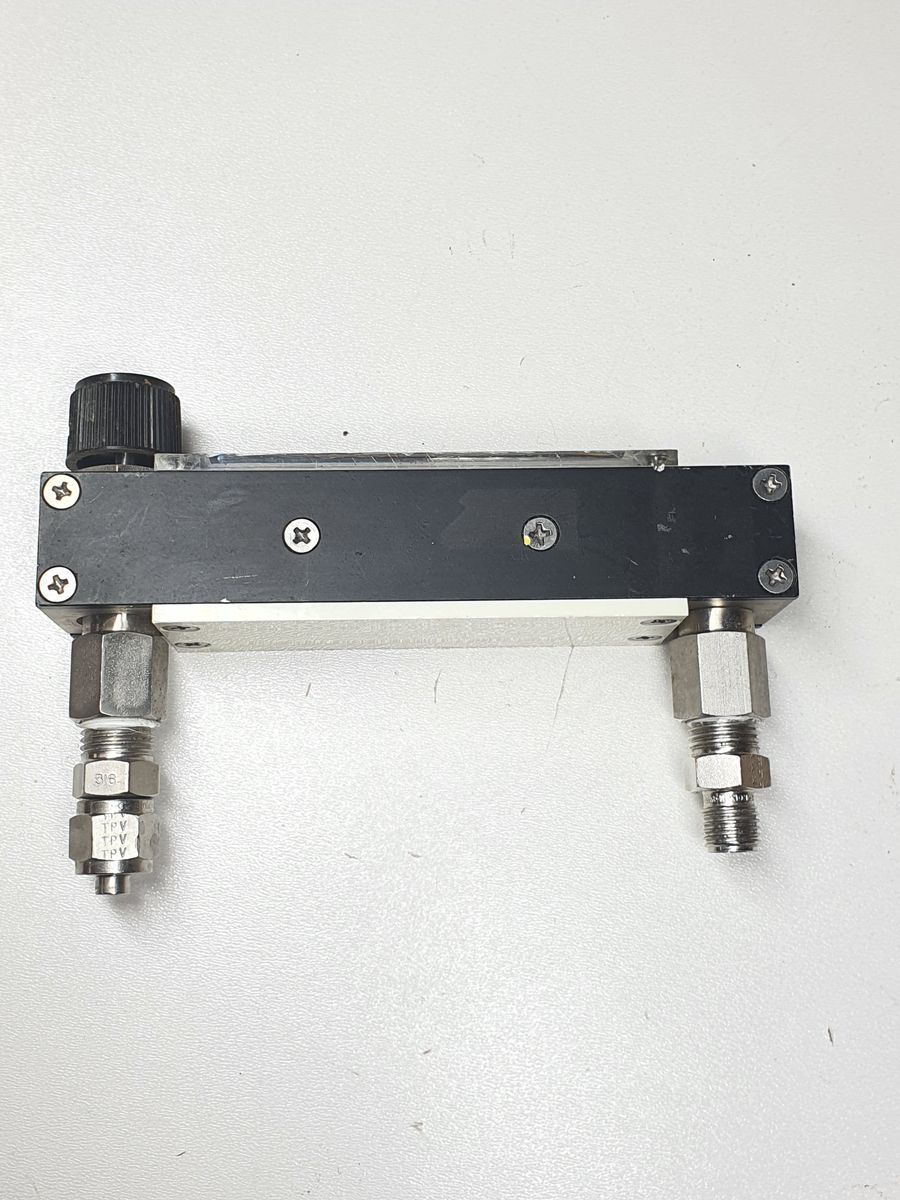

Brooks Sho-Rate™ Flowmeter

Manufacturer: Brooks Instrument
Product Family: Sho-Rate™
Model:1350/D2A3D1B5A00
Product Type: Variable Area Flowmeter (Rotameter) with Needle Valve
Tube Identification: Brooks Tube 6-65

Feature	Value / Meaning

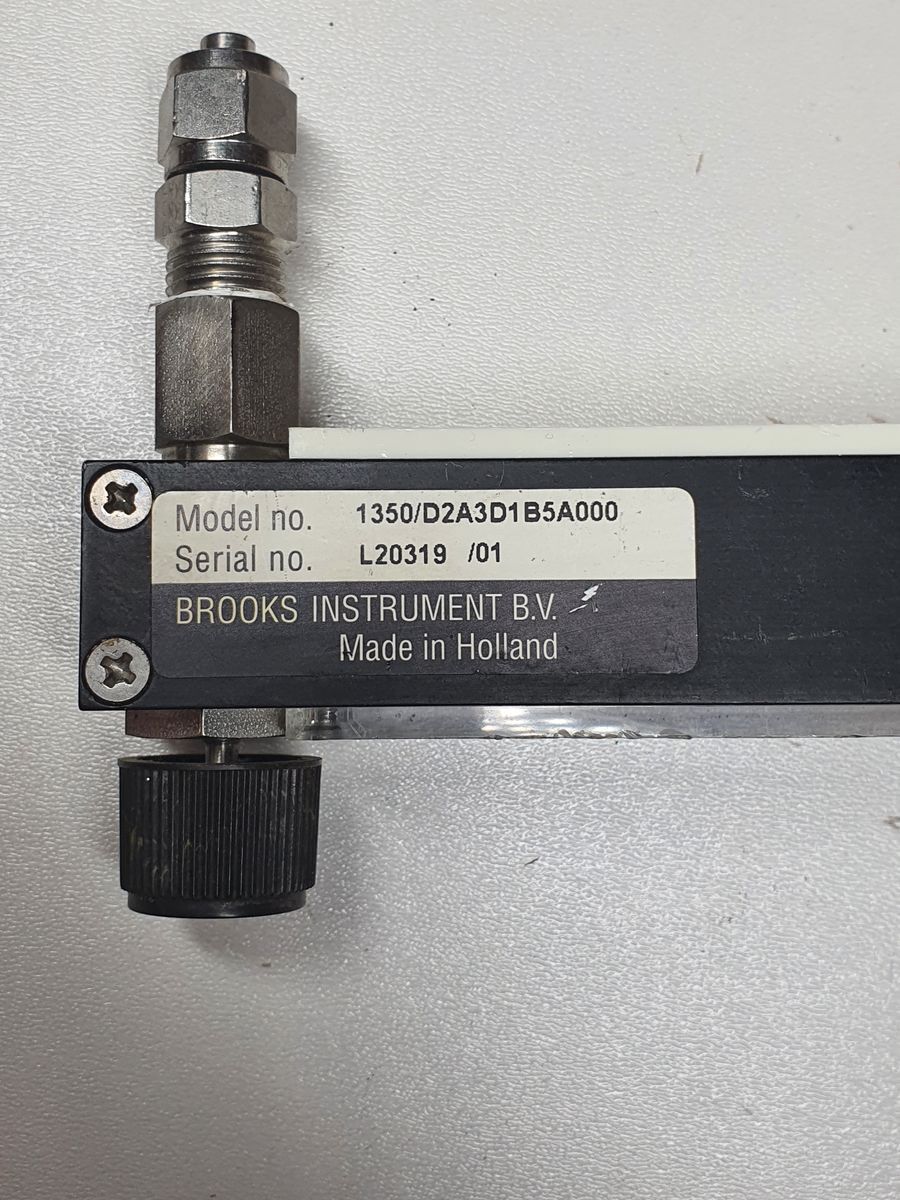

Model	1350/D2A3D1B5A000
Flow Type	Variable-area (rotameter), direct reading
Measured Medium	Nitrogen (N₂)
Flow Range	2–12 ln/h N₂ at 50 °C
Accuracy	±5 % of full scale
Repeatability	Excellent, stable measurements
Operating Temperature (Calibration)	50 °C
Inlet Pressure (Pe)	1.013 bar (standard)
Indication	Float position in glass tube
Installation	Vertical mounting
Connections	1/8″ or 1/4″ NPT (depends on model)
Mounting	Panel mount, optional rear or side connections
