Průtokoměr

Brooks Instrument 1355/D1F1A1D5C000 (10-150)

SKU: 3007

Skladem

DODÁNÍ 24/7 MOŽNÉ

Použité

Bez DPH: €65,00 (1 dostupné)

včetně DPH: €78,65

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 3 měsíce

Použité DOA

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

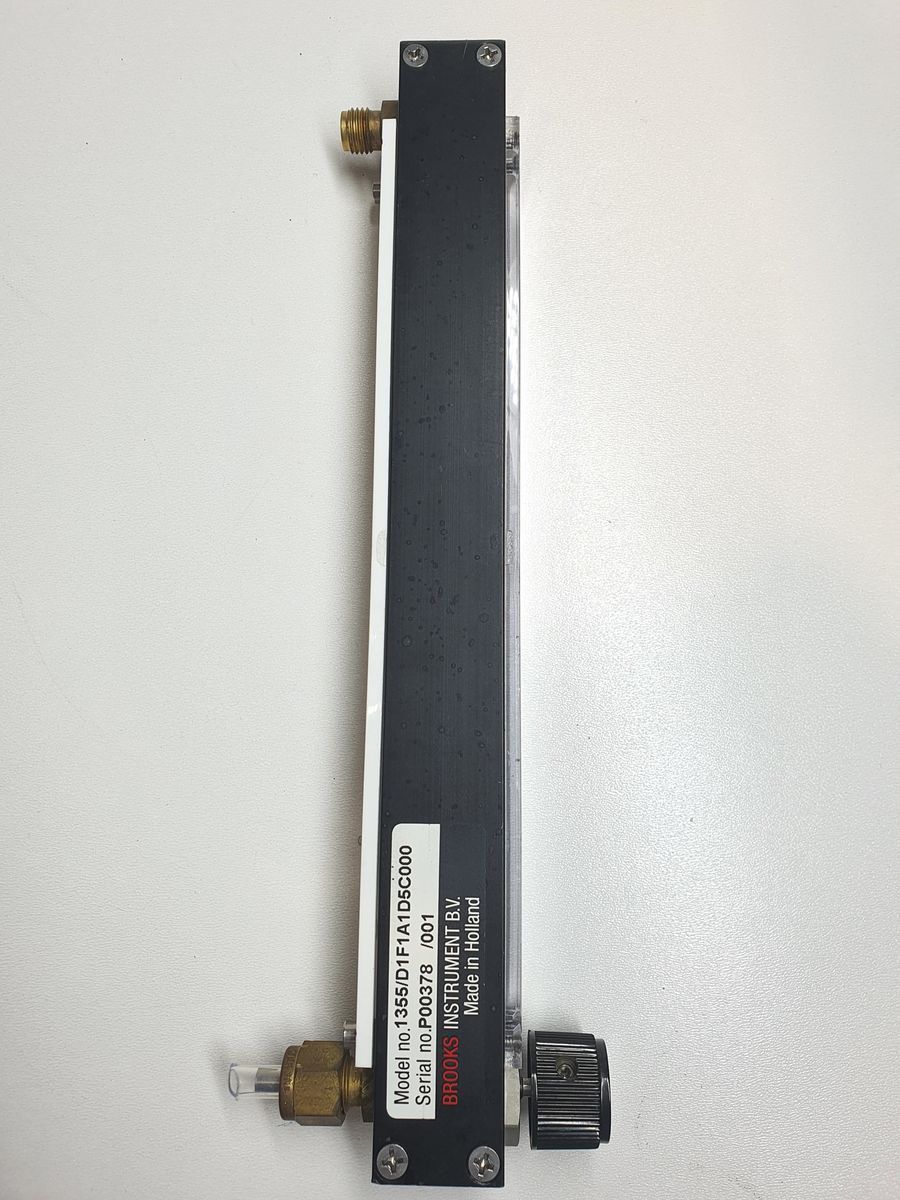

Brooks Sho-Rate™ Flowmeter

Manufacturer: Brooks Instrument

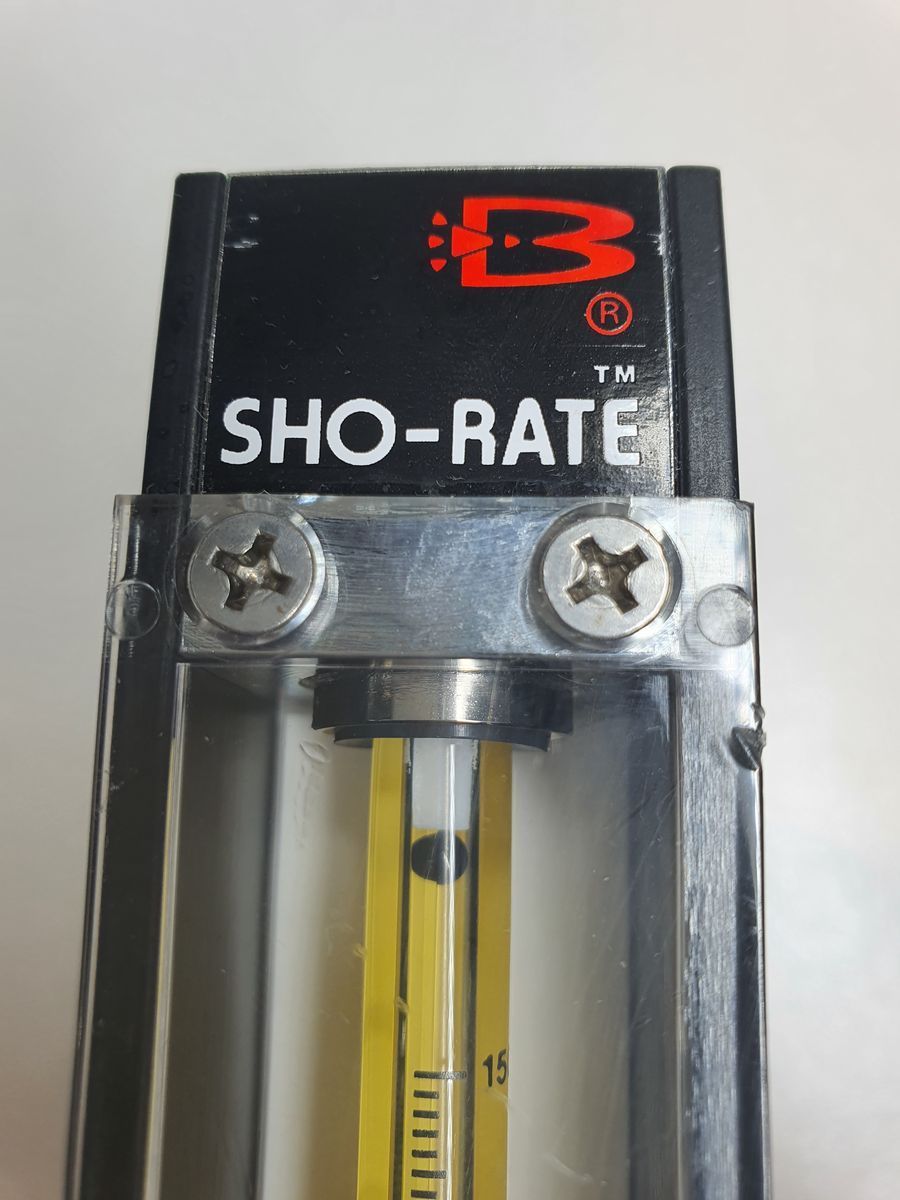

Product Family: Sho-Rate™
Model: 1355/D1F1A1D5C000

Parameter	Specification
Product Type	Variable Area Flowmeter (Rotameter)
Measurement principle	Float position (variable area)
Measuring range	10–150
Accuracy	±5% of full scale
Repeatability	Excellent (hallmark of the Sho-Rate™ series)

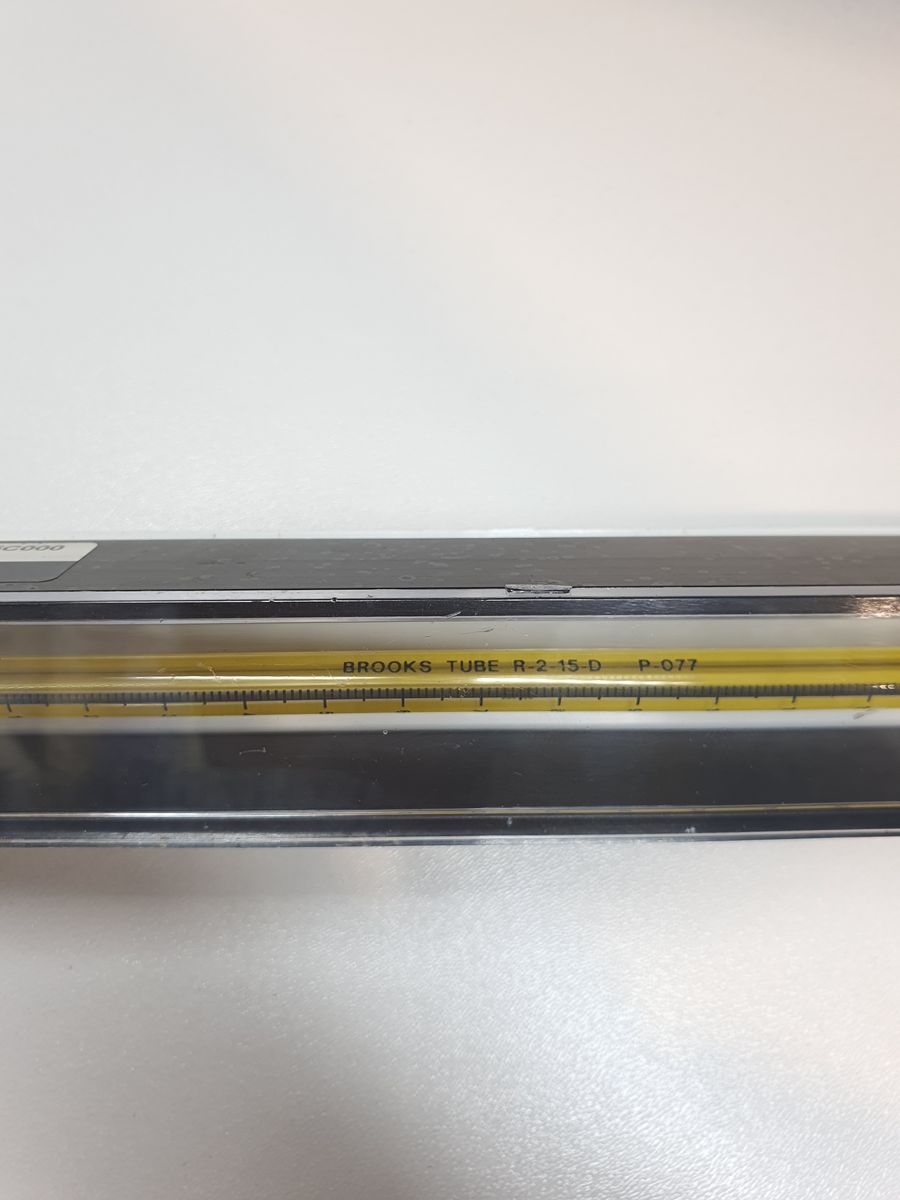

Tube identification	Brooks Tube R-2-15-D P-077
Maximum operating pressure	Typically up to 200 psig
Maximum operating temperature	Up to 93 °C (200 °F), depending on seal material
Process connections	1/8" NPT or 1/4" NPT
Mounting port size	1/8" NPT or 1/4" NPT
Mounting method	Panel mount or inline installation
Installation orientation	Vertical mounting required (float up)
Series reference	Sho-Rate™ 1355 (standard configuration)
