Dungs LGW 3 A2

SKU: 22002

Skladem

Vyberte stav

Used

Bez DPH: €35,00 (2 dostupné)

včetně DPH: €42,35

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informace o záruce

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 6 měsíce

Použité 3 měsíce

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

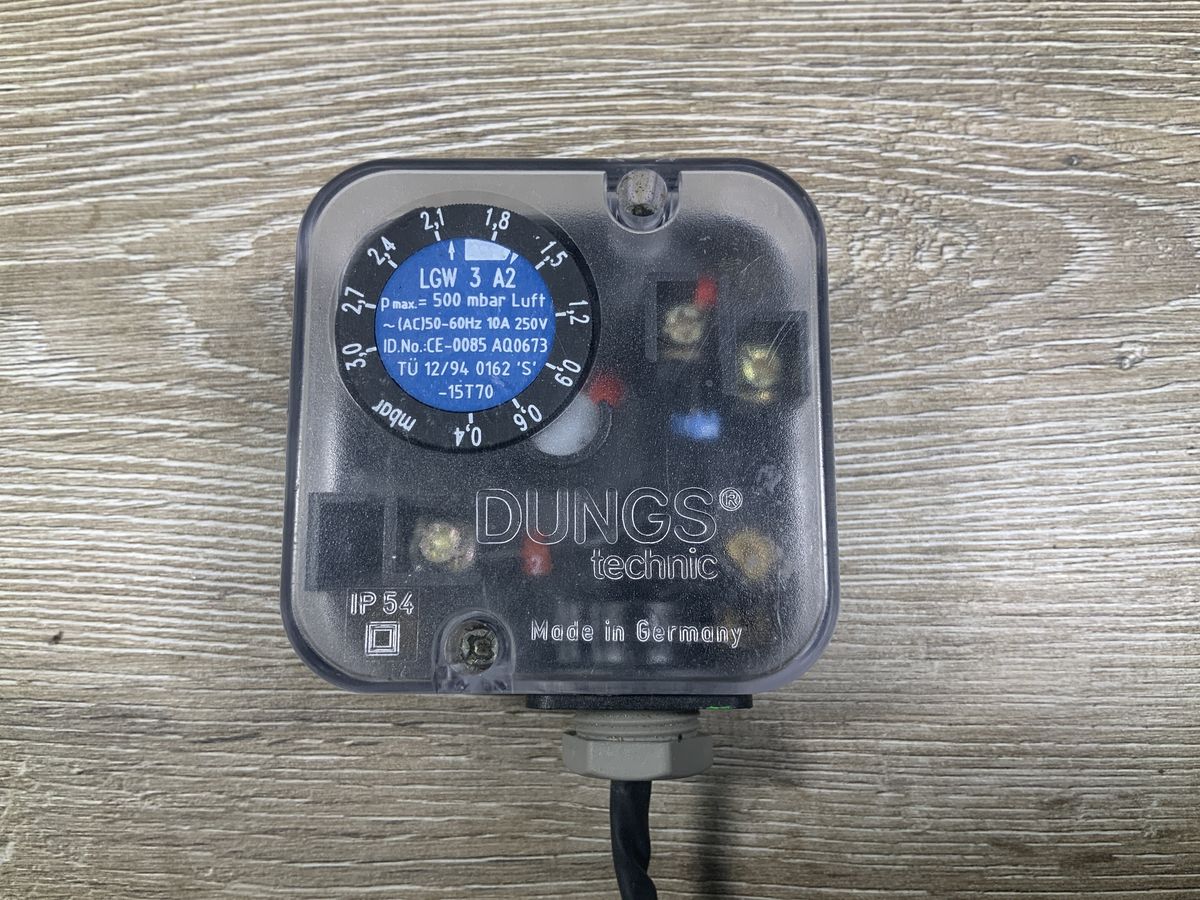

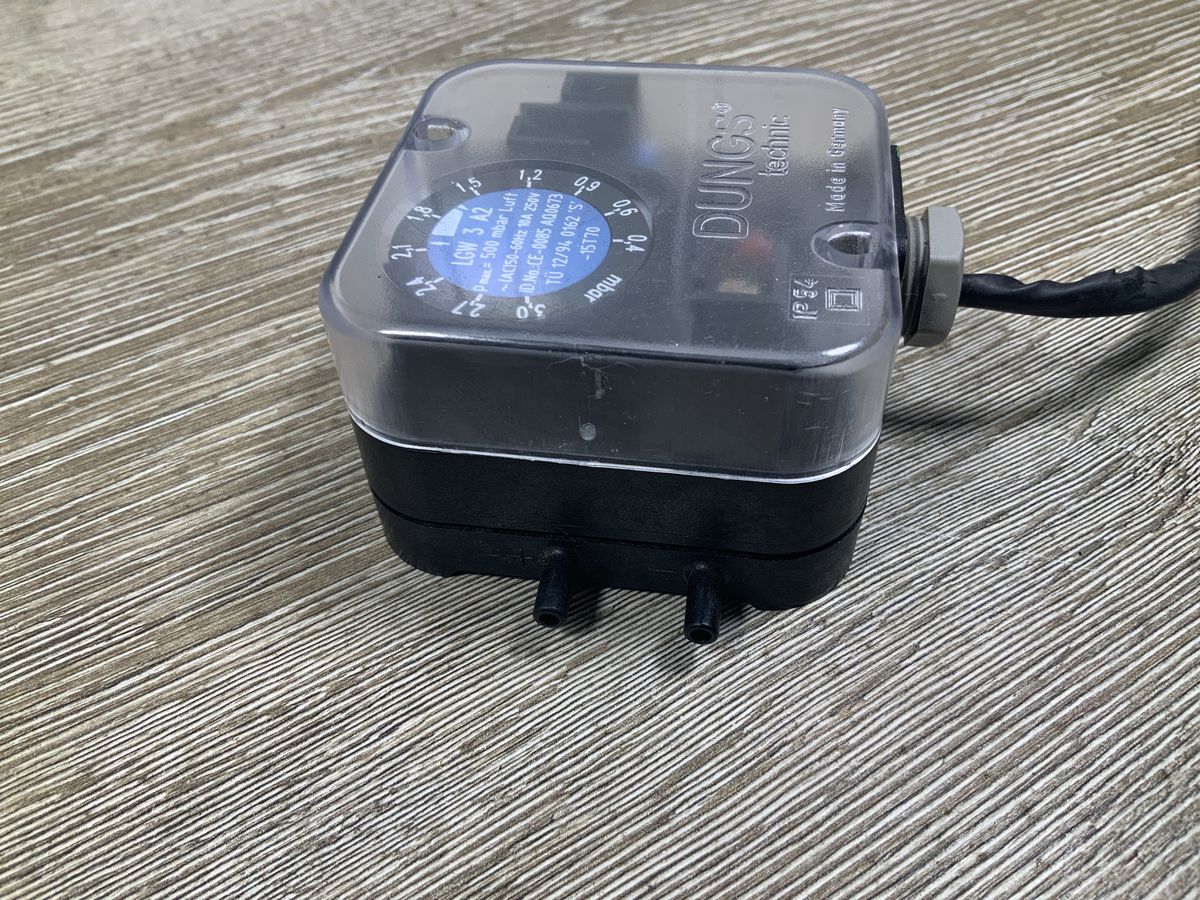

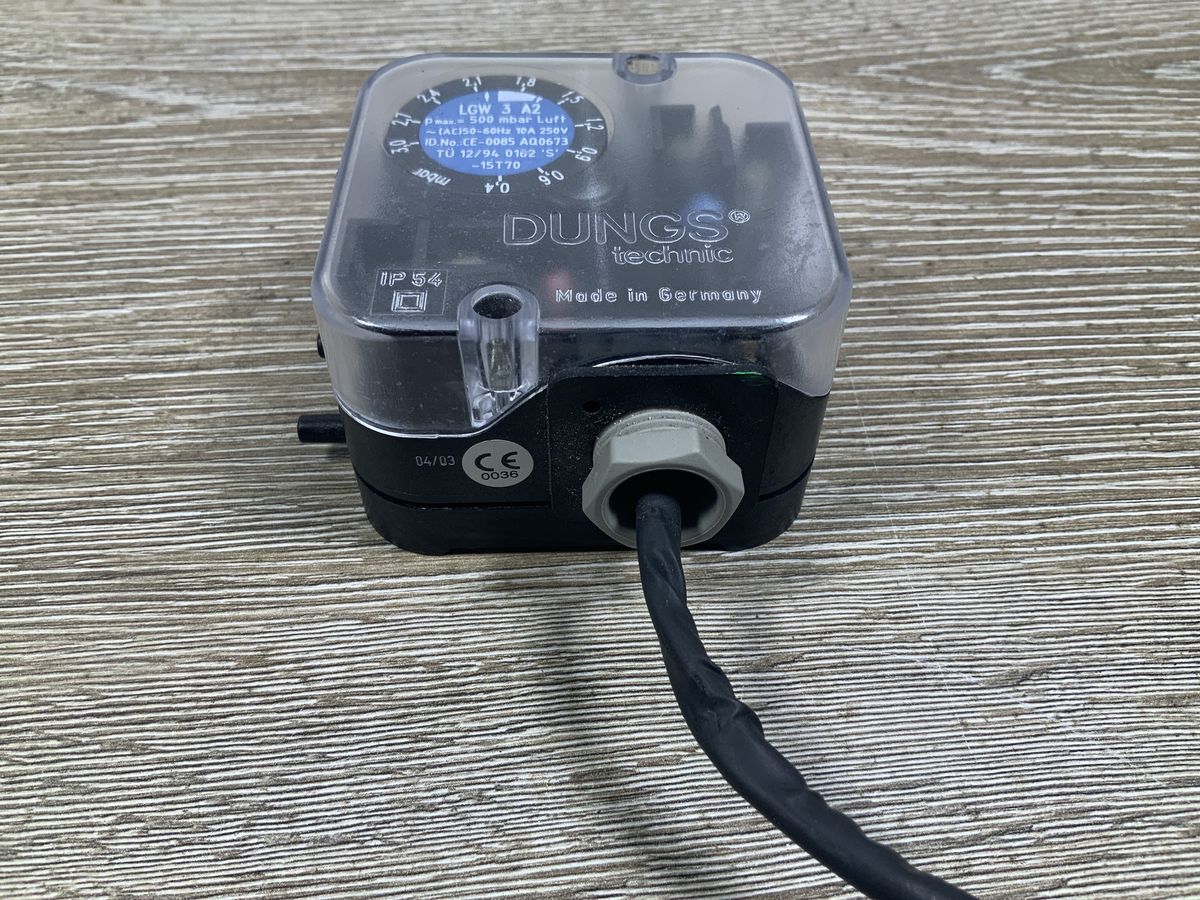

The Dungs LGW 3 A2 is an adjustable differential pressure switch designed for air and non-aggressive gas monitoring in combustion and HVAC systems. It features an adjustable dial scale from 0.4 to 3.0 mbar and a maximum operating pressure rating of 500 mbar. The unit is built into an IP54 rated housing with standard nozzle tube connections.

Specifications – LGW 3 A2

Parameter	Specification
Pressure Range	0.4 - 3.0 mbar
Max. Pressure	500 mbar
Voltage / Current Rating	250 V AC, 10 A, 50-60 Hz
Protection Class	IP 54
Temperature Range	-15 °C to +70 °C (-15T70)
