Přepínače

Kraus & Naimer KG80

SKU: 22004

Skladem

Vyberte stav

Used

Bez DPH: €45,00 (1 dostupné)

včetně DPH: €54,45

Prices exclude VAT. Contact us for bulk pricing or custom configurations.

Informace o záruce

Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

Záruční doby podle podmínek

Nový 12 měsíce

Zrekonstruováno 6 měsíce

Použité 3 měsíce

We are not an authorized distributor, representative, or affiliate of any manufacturer or brand listed on this website

Popis

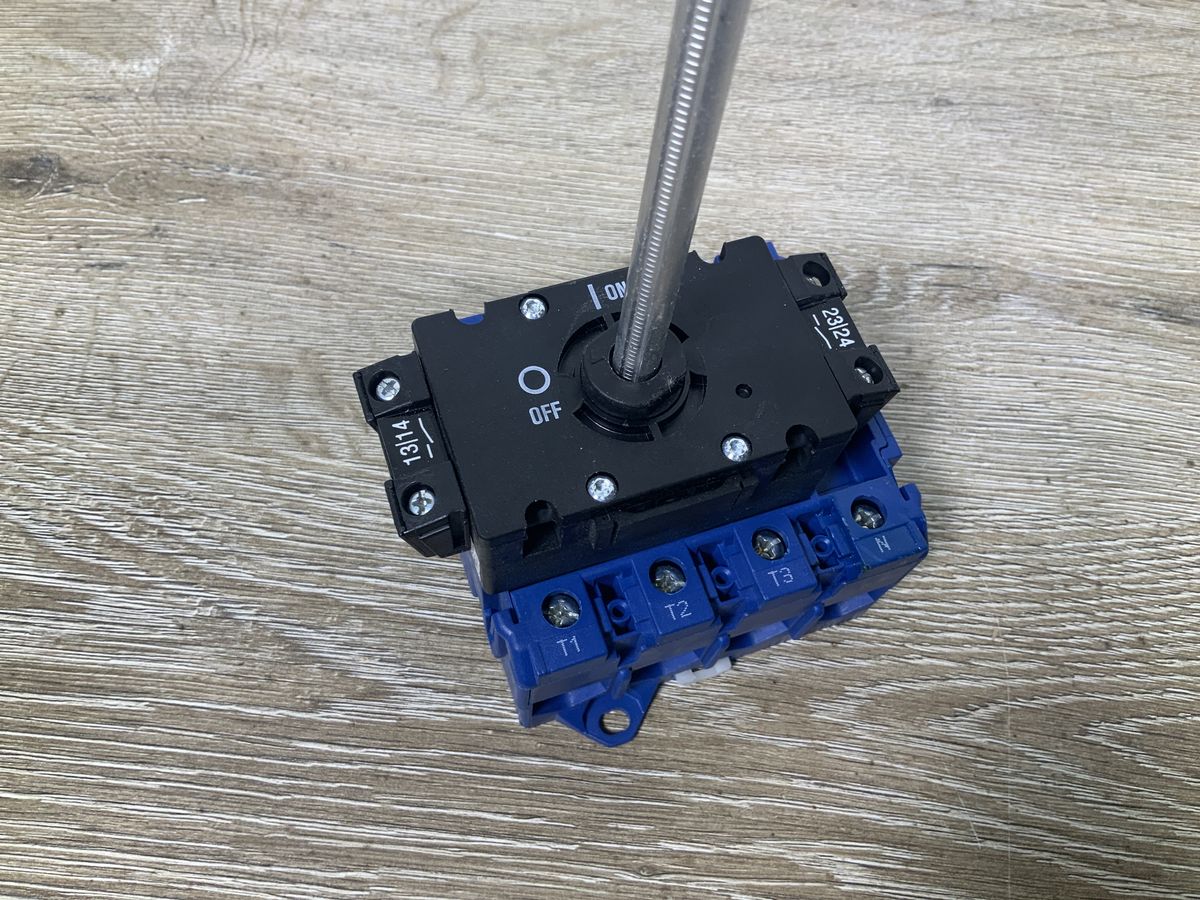

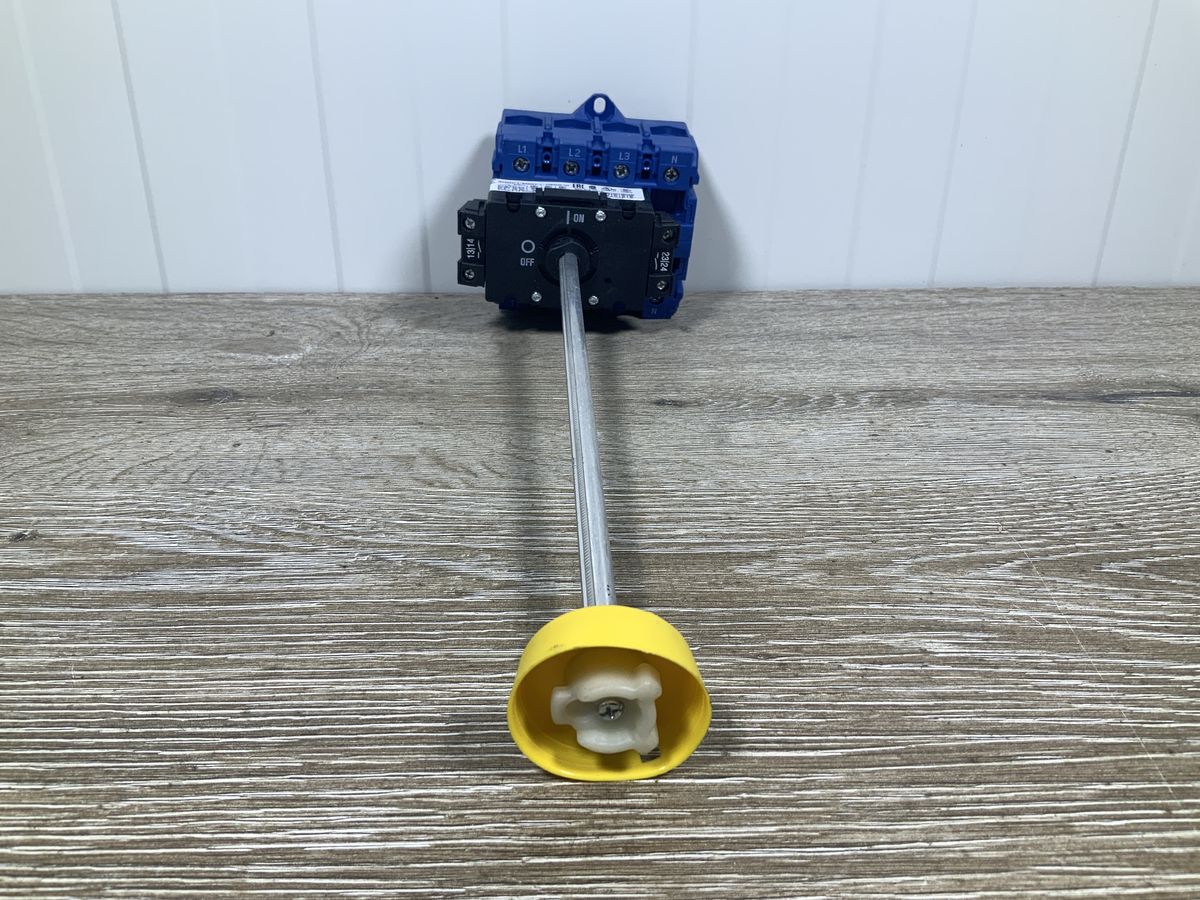

The Kraus & Naimer KG80 is an industrial rotary switch-disconnector designed for heavy-duty motor control and electrical circuit isolation. It is rated for up to 80 A continuous current at 600/690 V AC and features a main 3-pole plus neutral terminal configuration. This unit is equipped with an extended shaft for door coupling mounting and includes side-mounted auxiliary contact blocks.

Specifications – KG80

Parameter	Specification
Switch Type	Rotary Switch-Disconnector / Manual Motor Controller
Rated Continuous Current (Iu/Ith)	80 A
Max Rated Operating Voltage (Ue)	600 V AC / 690 V AC
Switching Power (AC-23A, 380-440V)	30 kW
Switching Power (AC-3, 380-440V)	22 kW
Motor Rating (3-Phase, 480V)	40 HP

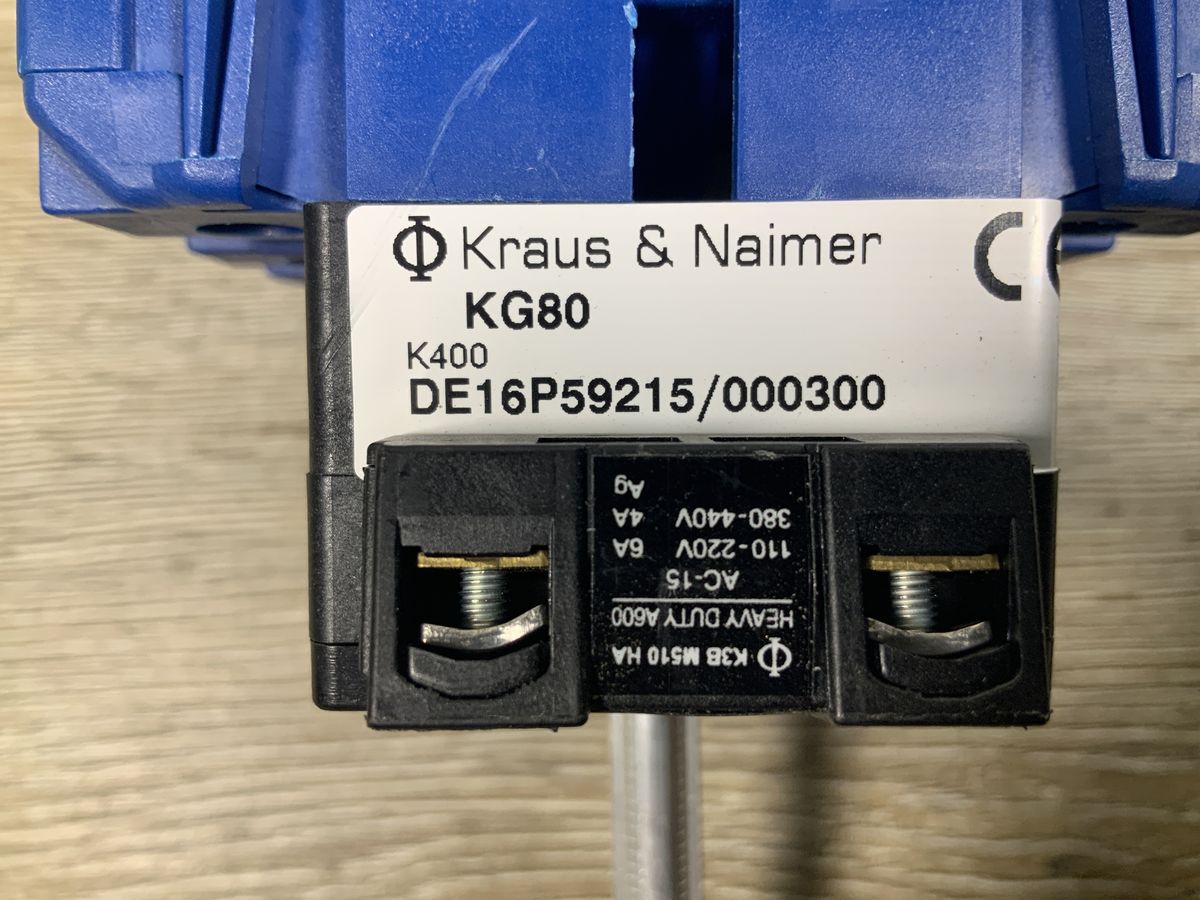

Auxiliary Contact Block	K3B M510 HA (A600 AC-15)

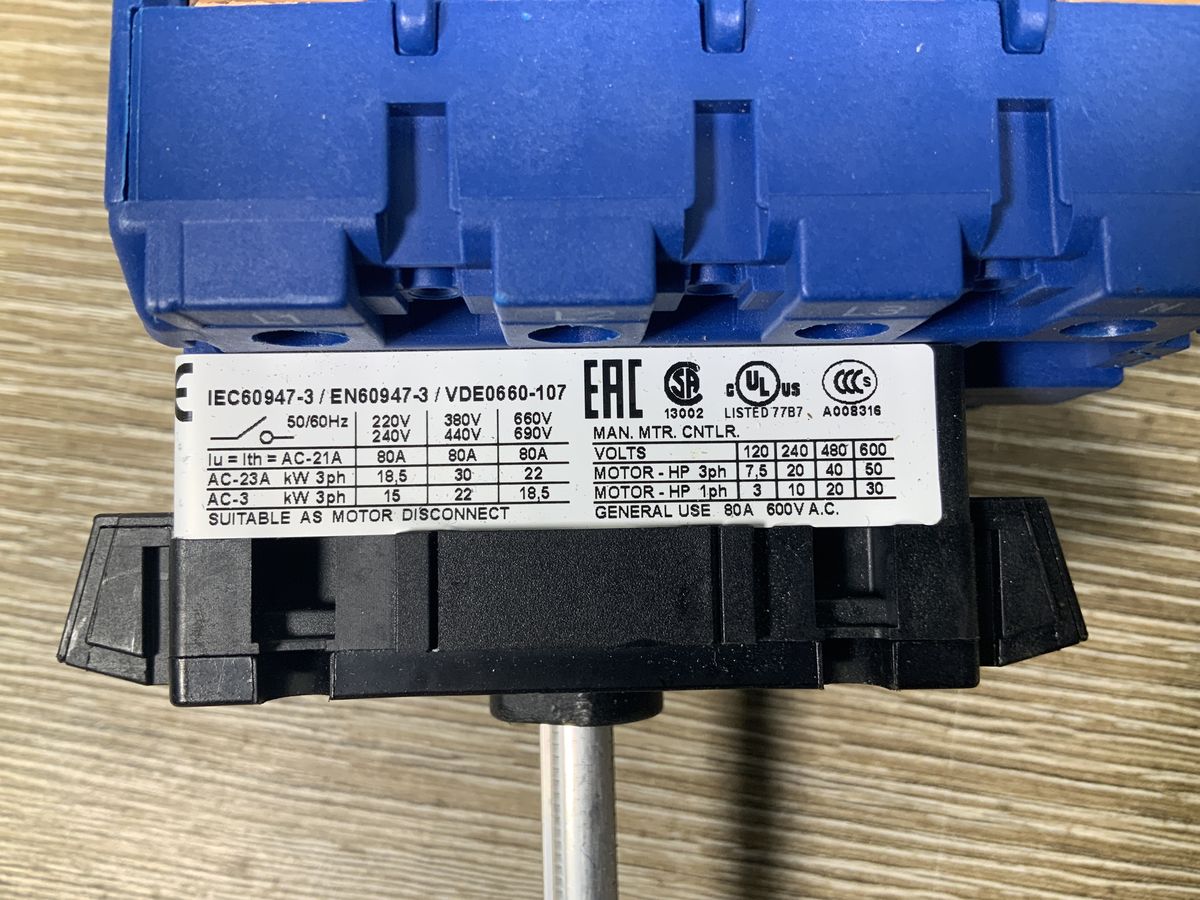

Standards	IEC60947-3 / EN60947-3 / VDE0660-107
