Regulátory
Swagelok KHF1GJM818A20000
SKU: 8036
Skladem
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.

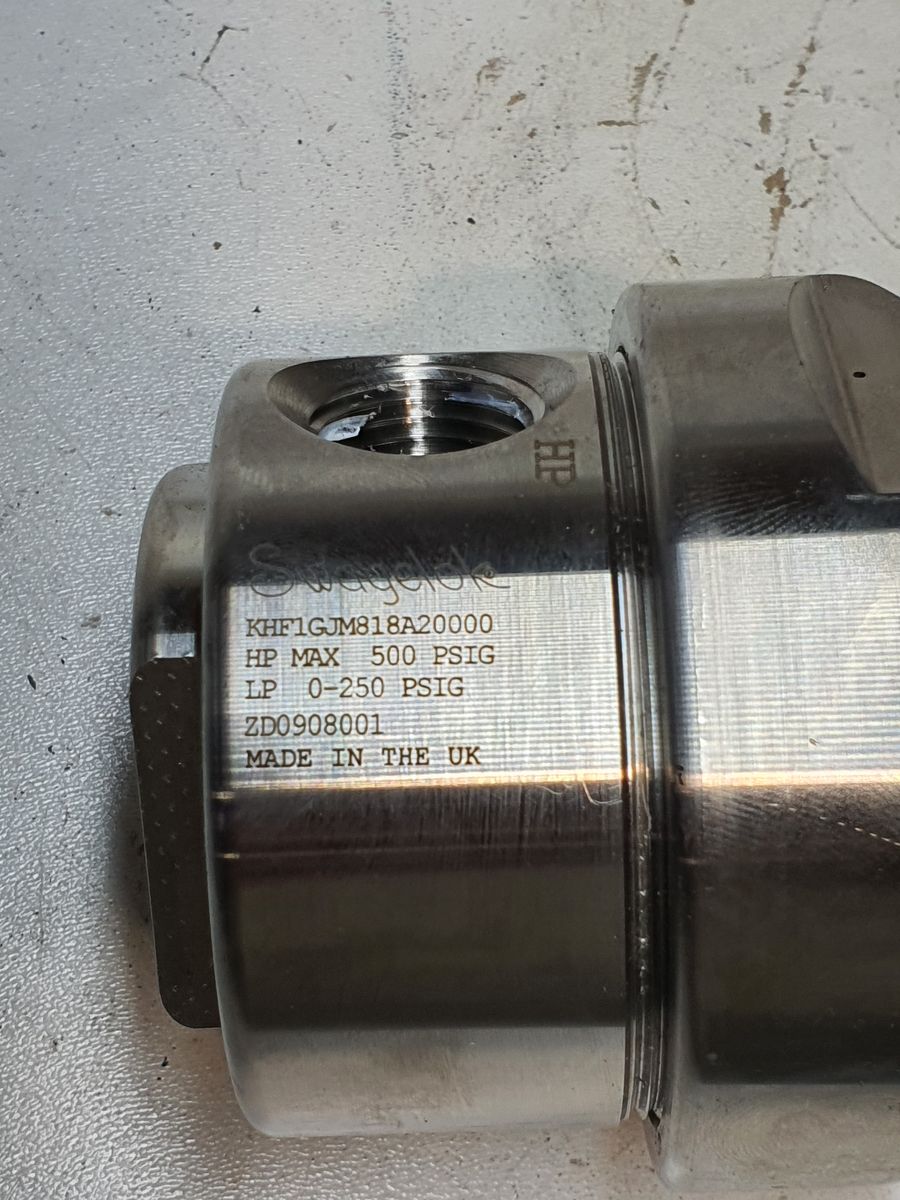

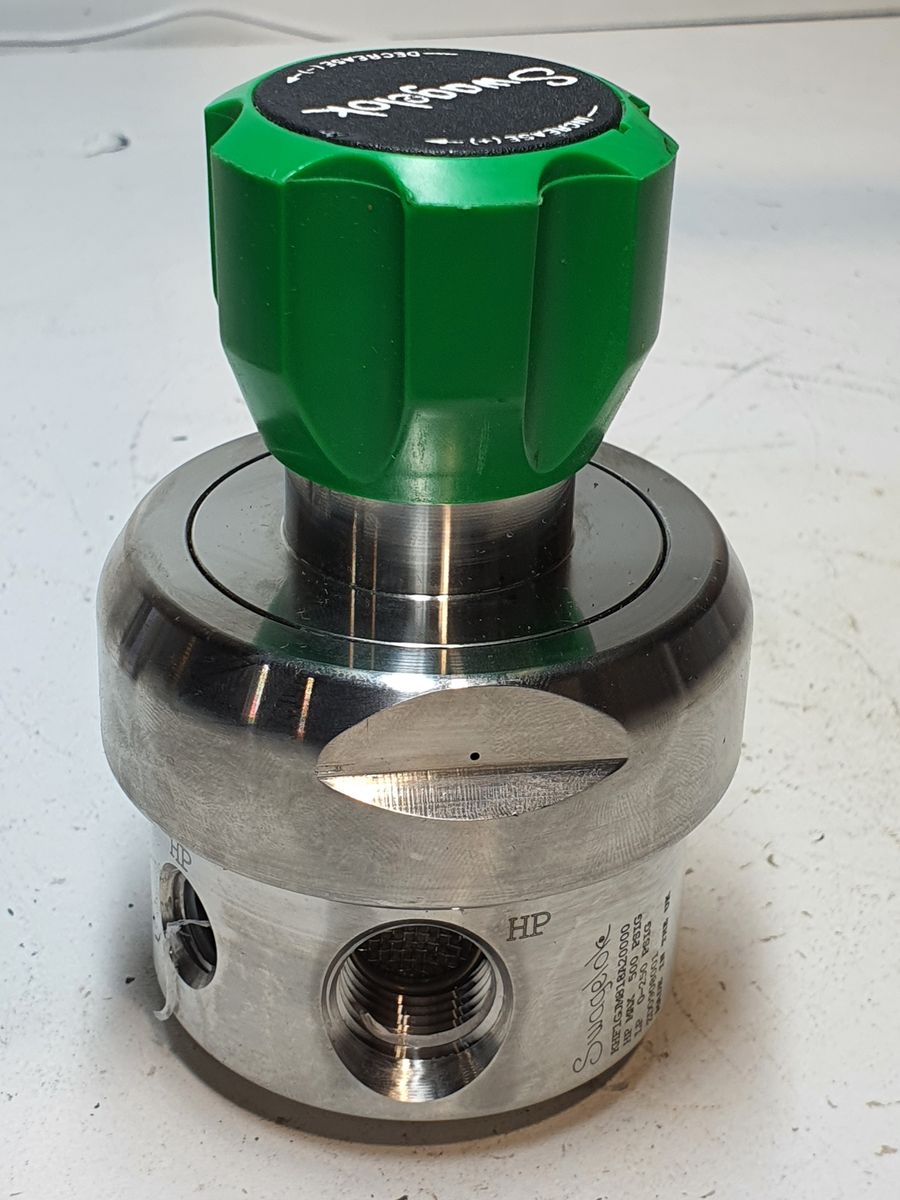

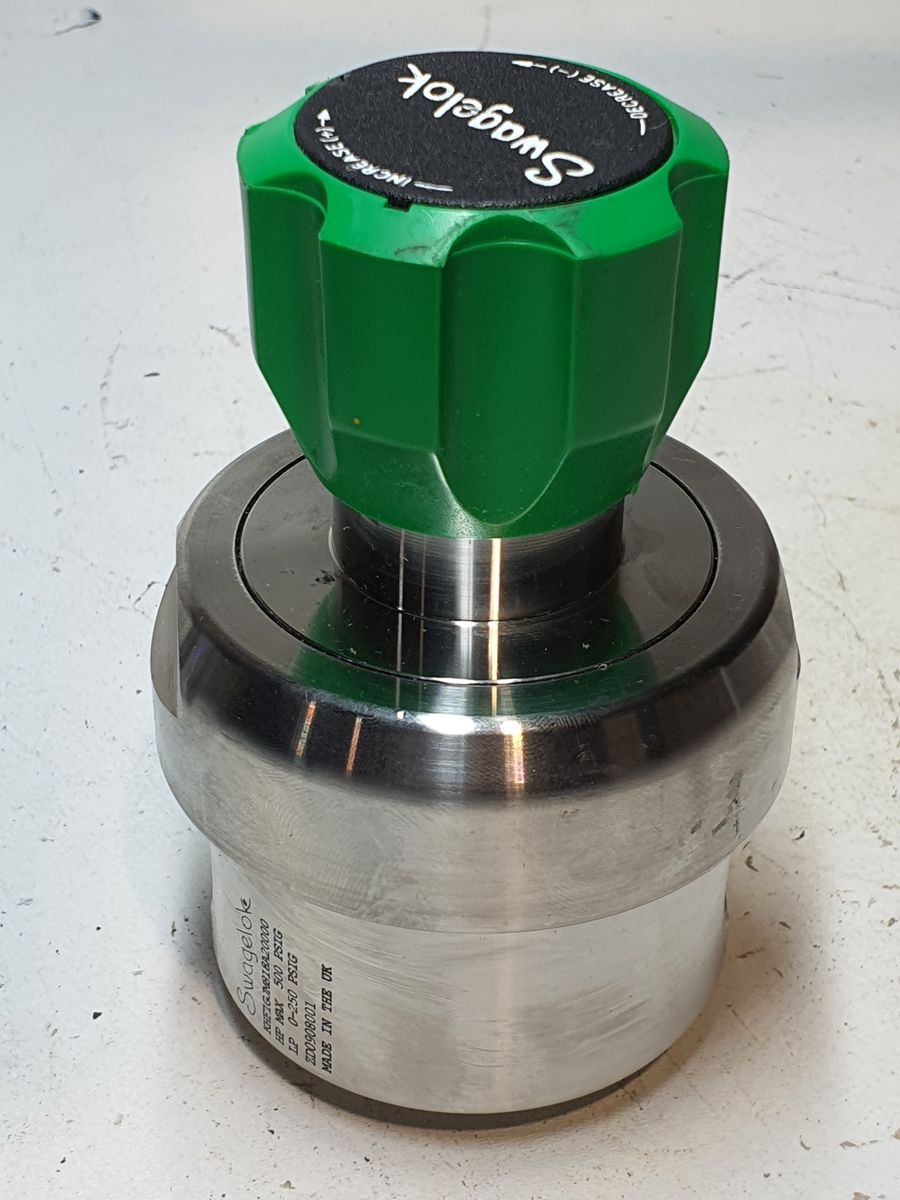

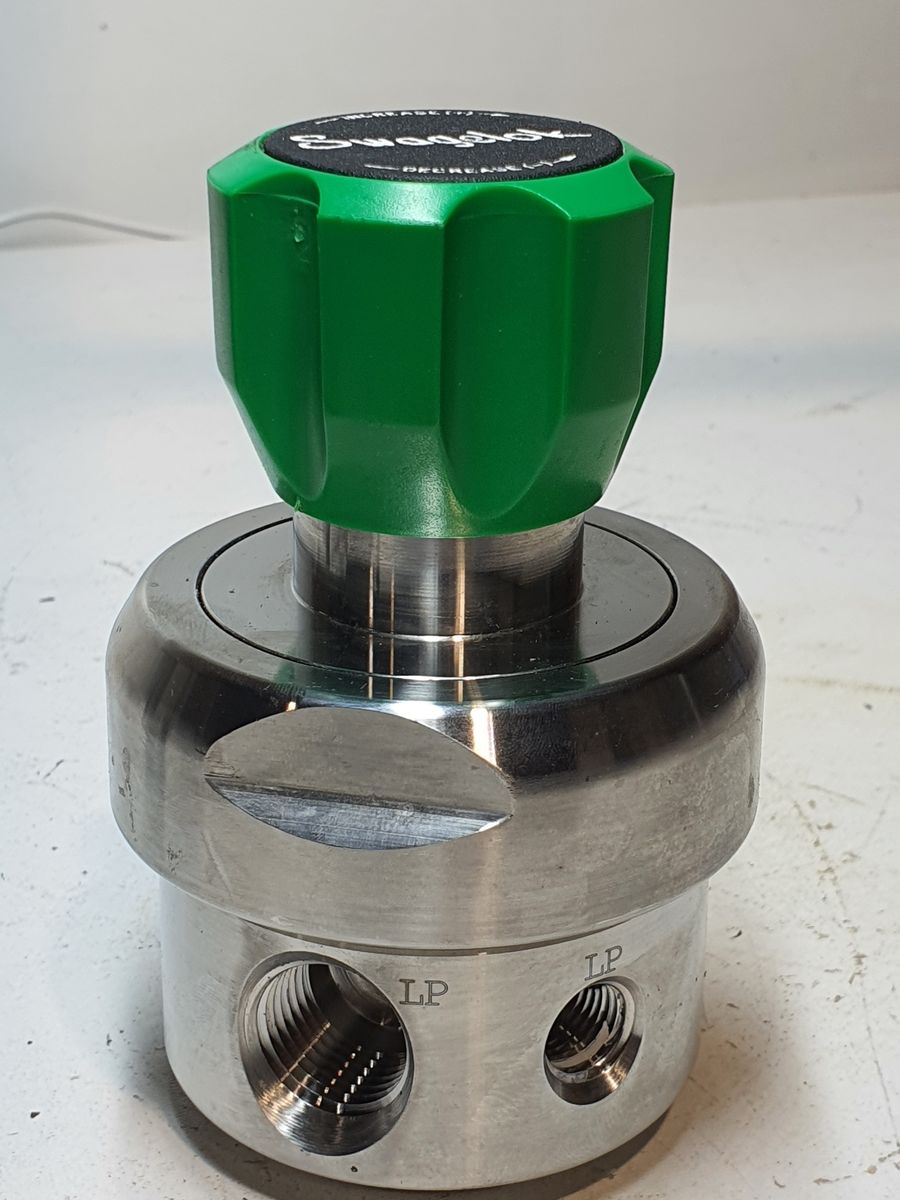

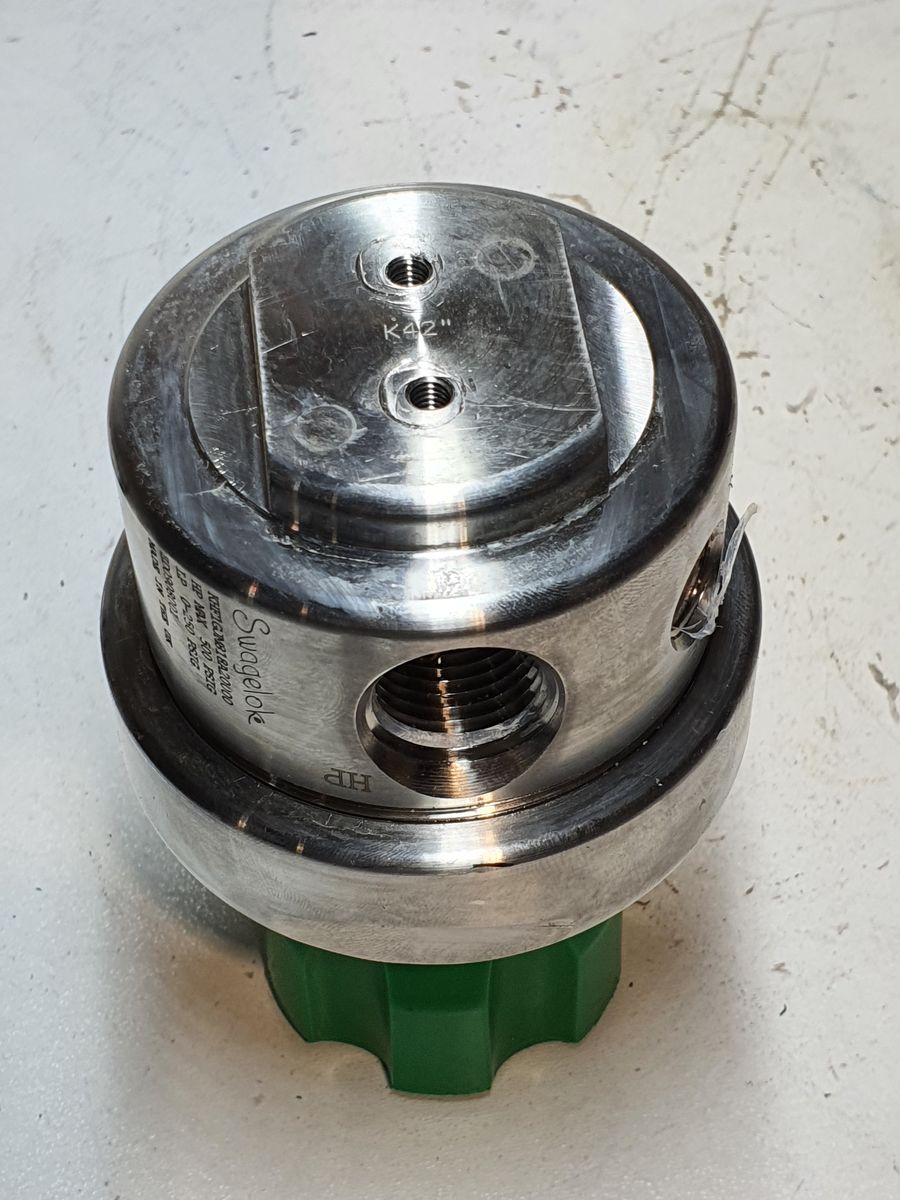

SWAGELOK KHF1GJH818A20000 HIGH FLOW/SENSITIVITY PR REGULATOR
Specification table
| Parameter | Details |
|---|---|
| Manufacturer | Swagelok |
| Model / Part Number | KHF1GJH818A20000 |
| Product Type | High Flow / High Sensitivity Pressure Regulator |
| Function | Pressure Reducing Regulator |
| Inlet Pressure Rating | Up to 34.4 bar (500 psig) |
| Outlet / Controlled Pressure Range | 0–250 psig (0–17.2 bar) |
| Maximum Inlet Pressure (HP Max) | 500 psig |
| Body Material | Stainless Steel |
| Port Size — Inlet | 1/2″ FNPT |
| Port Size — Outlet | 1/2″ FNPT |
| Gauge Port Size | 1/4″ FNPT |
| Flow Capacity | High Flow (optimized for high Cv / sensitivity) |
| Operating Temperature Range | Typical (stainless steel regulator standard range) |
| Regulator Configuration | “H” Configuration |
| Mounting / Orientation | Inline |
| Weight (Approx.) | [Not specified — typical for similar regulators: ~2–3 lbs] |
| Features | High sensitivity, high flow capacity, stainless steel construction, gauge taps |
×
![]()
