Regulátory

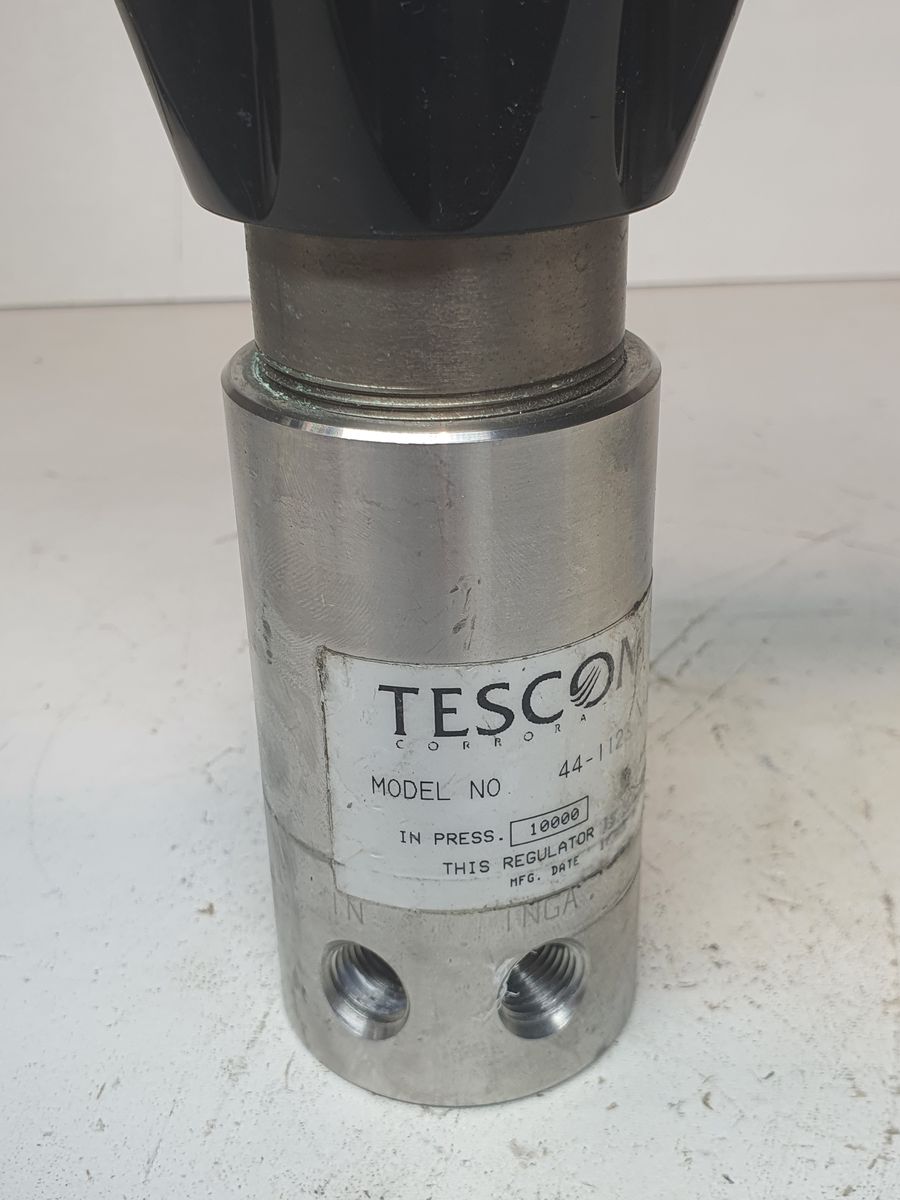

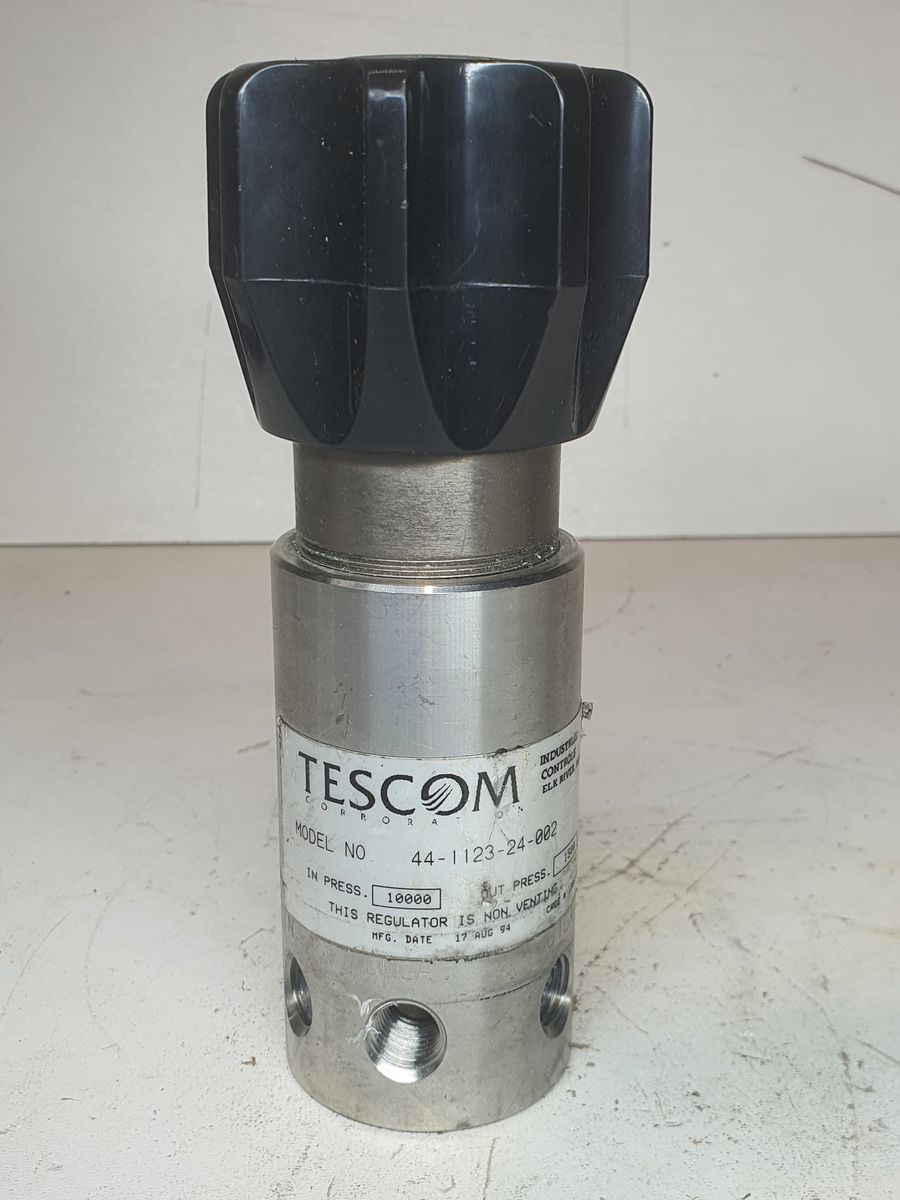

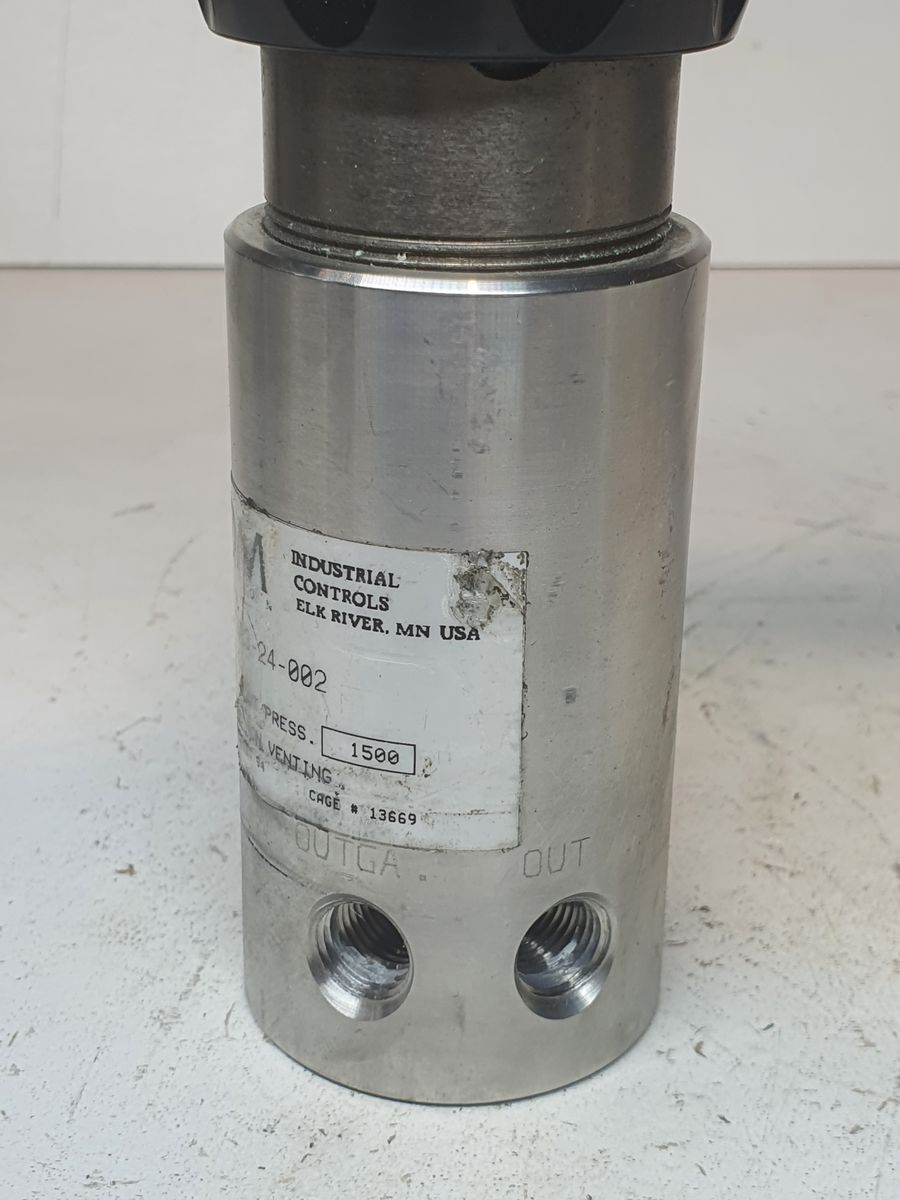

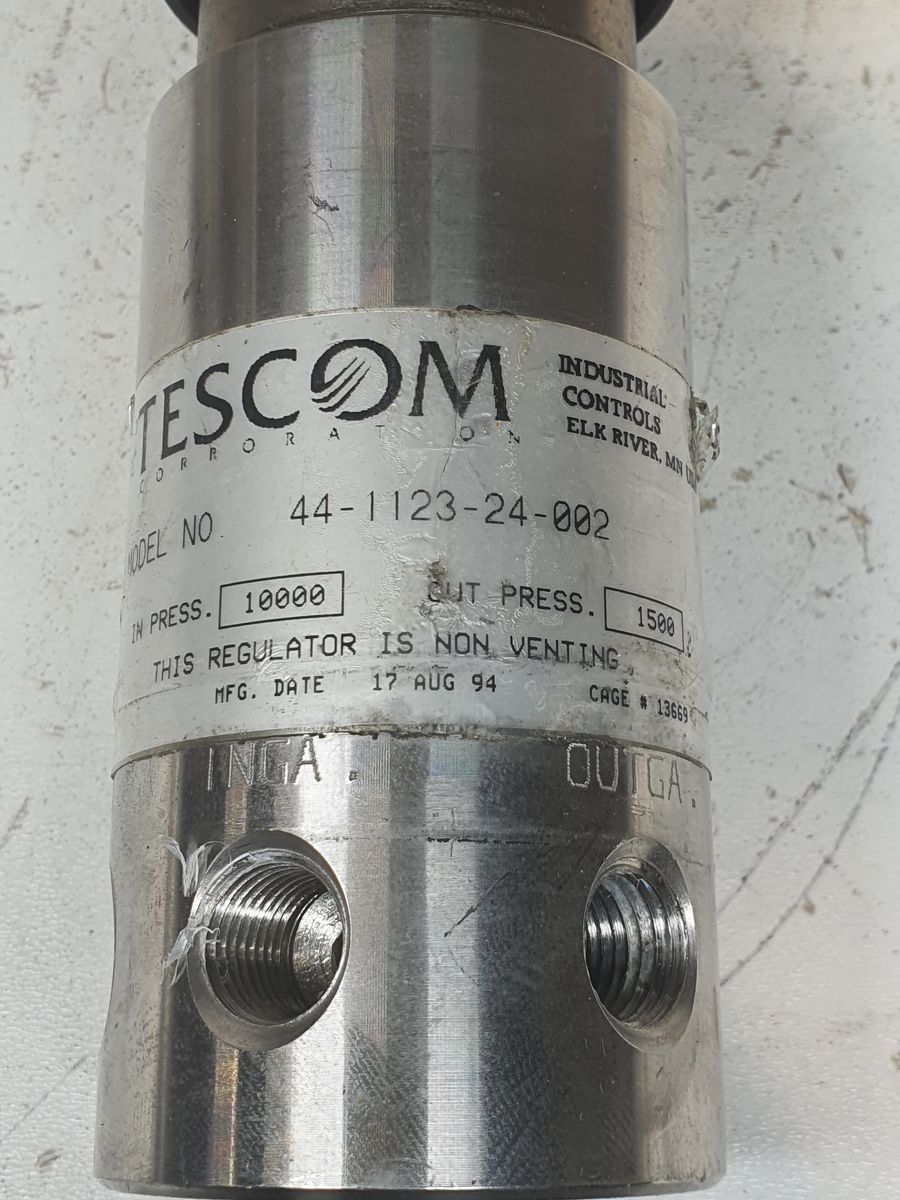

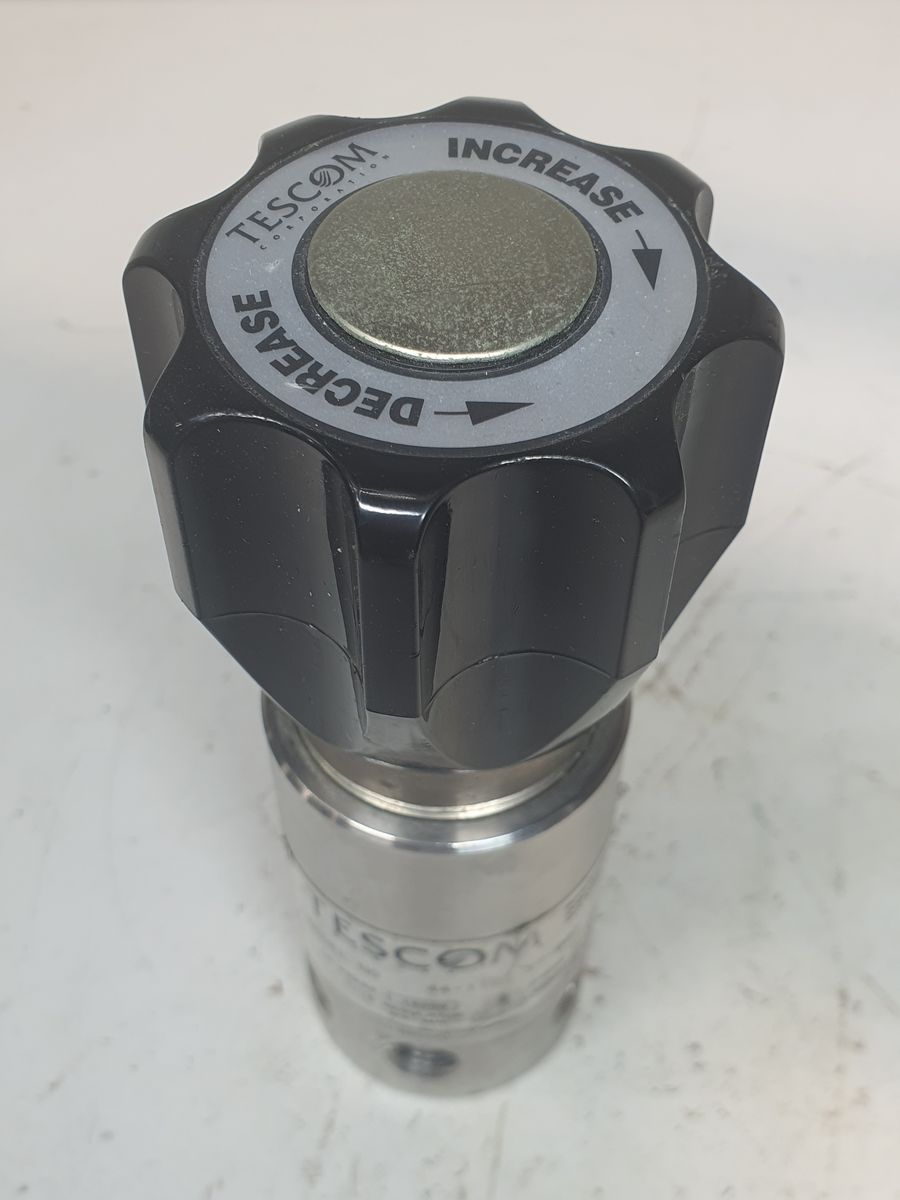

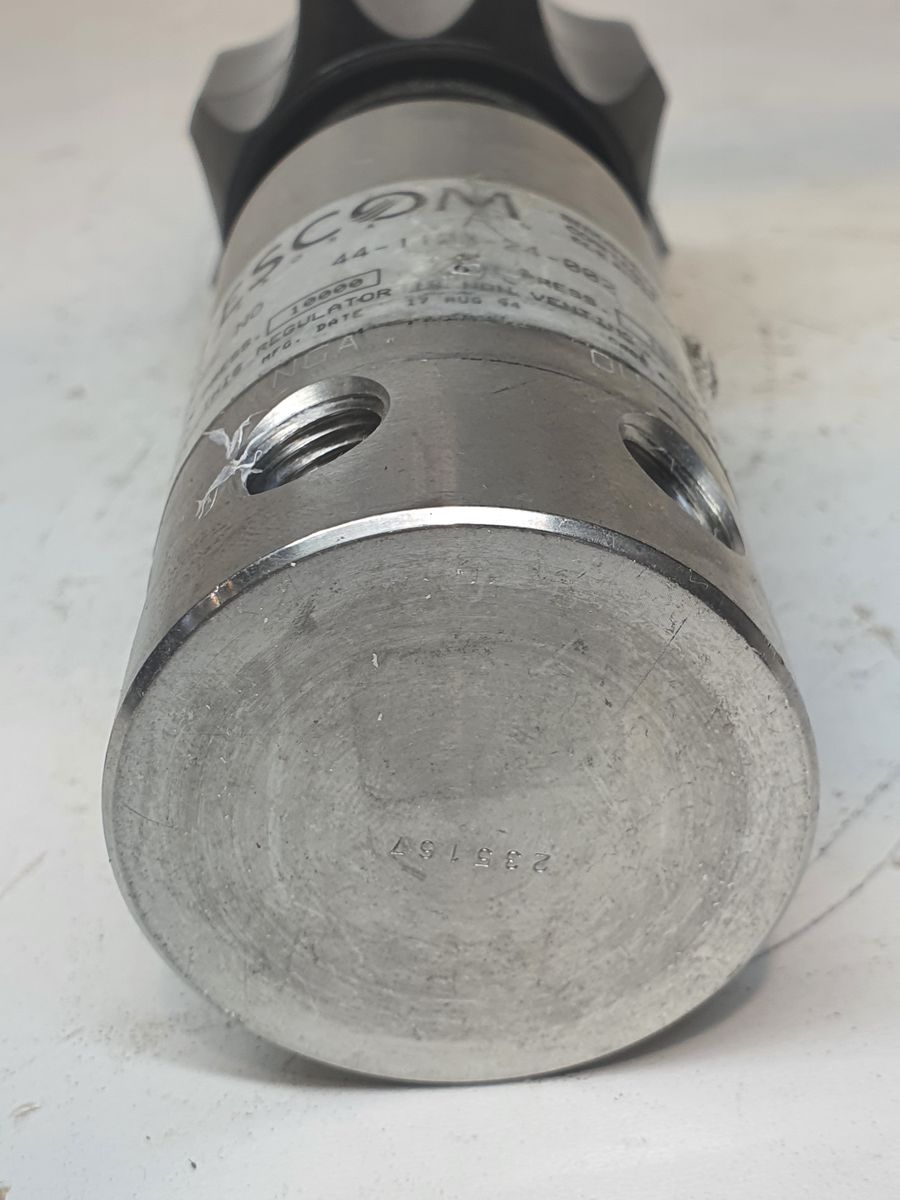

Tescom 44-1123-24-002
SKU: 8018
Skladem
Informace o záruce
Důležité: All warranties are our own warranties and do not cover factory or manufacturer warranties.
TESCOM 44-1123-24-002
Specification Table
| Parameter | Details |
|---|---|
| Series | TESCOM 44-1100 Series Pressure Regulator Control |
| Model / Part Number | 44-1123-24-002 |
| Function | Pressure Reducing Regulator (Low-flow, Spring-Loaded) |
| Maximum Inlet Pressure (Stainless Steel) | 10,000 psig (690 bar) |
| Outlet / Controlled Pressure Range | 10–1500 psig (0.69–103 bar) |
| Design Proof Pressure | 150% of maximum rated inlet |
| Leakage | Bubble-tight |
| Operating Temperature | −40°F to 165°F (−40°C to 75°C) |
| Flow Capacity (Cv) | 0.06 |
| Maximum Operating Torque | 35 in-lb (3.95 N·m) |
| Body Material | 303 Stainless Steel |
| Main Valve Seat Material | Polyimide (Vespel®) |
| Vent Valve Seat Material | CTFE |
| O−Ring Material | Buna-N |
| Back-up Ring Material | PTFE |
| Remaining Internal Parts | 300 Series Stainless Steel |
| Filter Material | Stainless steel body: 15 µm nominal (303 SS) |
| Port Size & Type | 1/4″ NPTF (female) |
| Load Type | Spring loaded |
| Weight (Approx.) | 4.8 lbs (2.2 kg) |
| Standard Features | Piston-sensed design, vent to zero capability, inlet/outlet gauge ports |
×
![]()
